Scribbler, 2025

Building a Generator

June - September 2024

The question behind Scribbler is: what is it, exactly, that makes a page of writing read as writing? Not what makes it legible - what makes you recognize it as language at a glance, from across a room, without reading a word.

The obvious modern approach to exploring this question is to train something. Feed a model enough handwriting and let it produce more. I did not want to do that. A model that has learned to imitate handwriting cannot tell you why its output looks like handwriting. The whole point was to find the rules, which is antithetical to the black box AI model.

So the project began by hand, in June 2024, as a set of small programs in vsketch. Everything in it rests on one observation about the Latin alphabet:

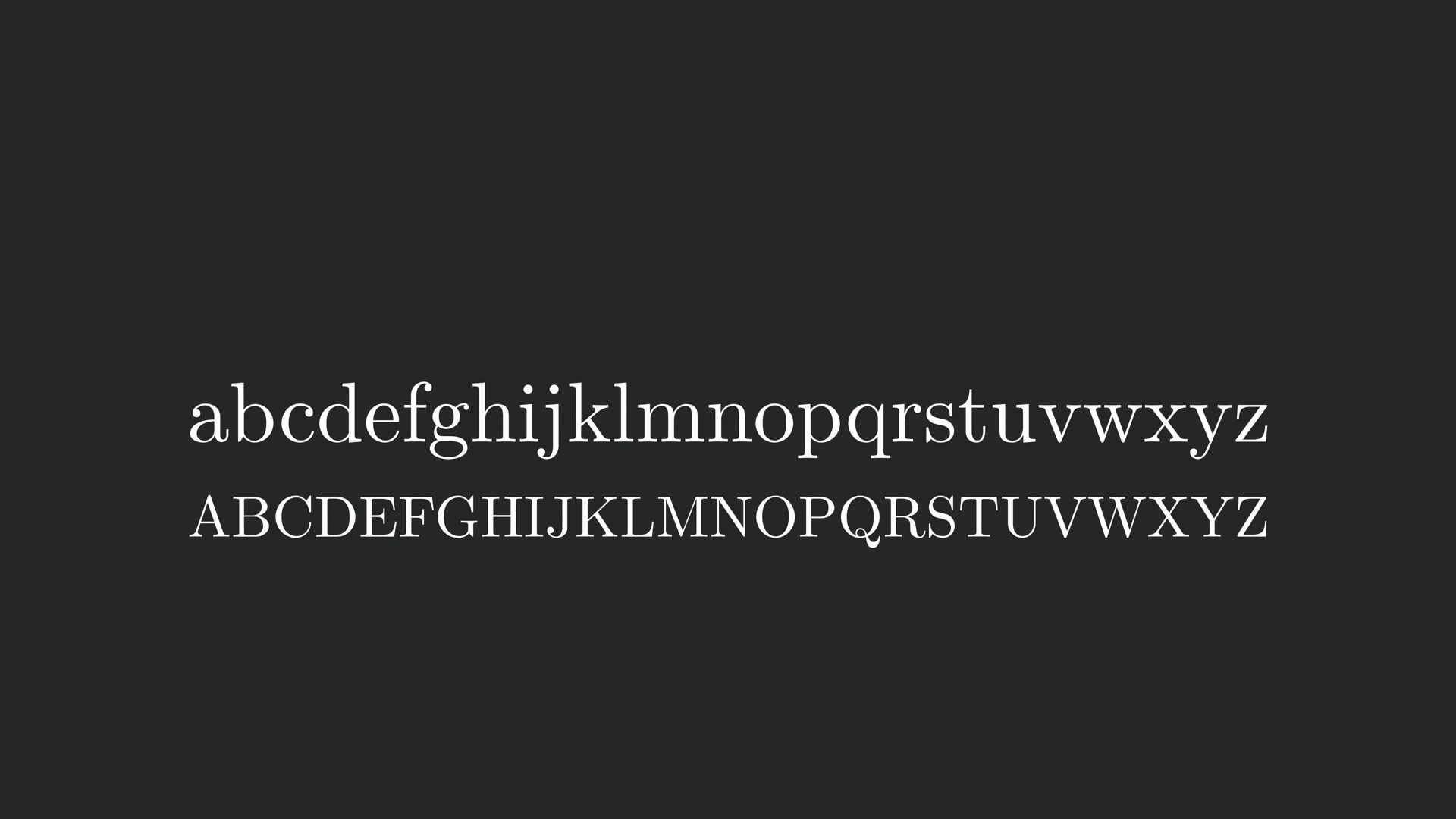

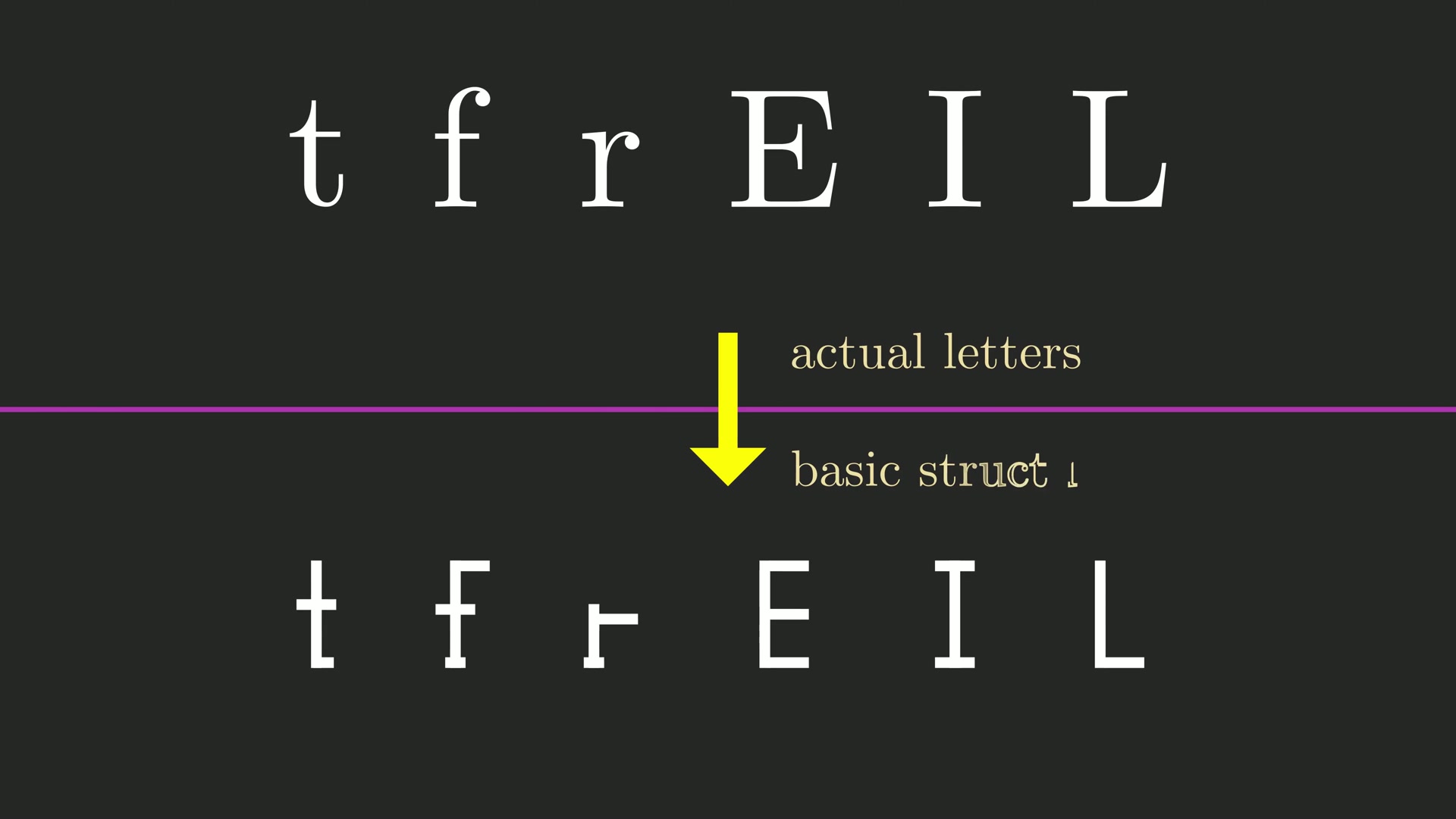

Nearly every letter in the alphabet is a vertical stroke with things attached to it. A t is a stroke with one crossbar. An f is a stroke with a crossbar and a hook. An E is a stroke with three branches on one side. An L is a stroke with one branch at the bottom. Strip the letters down to that skeleton and much of the alphabet survives the reduction almost intact.

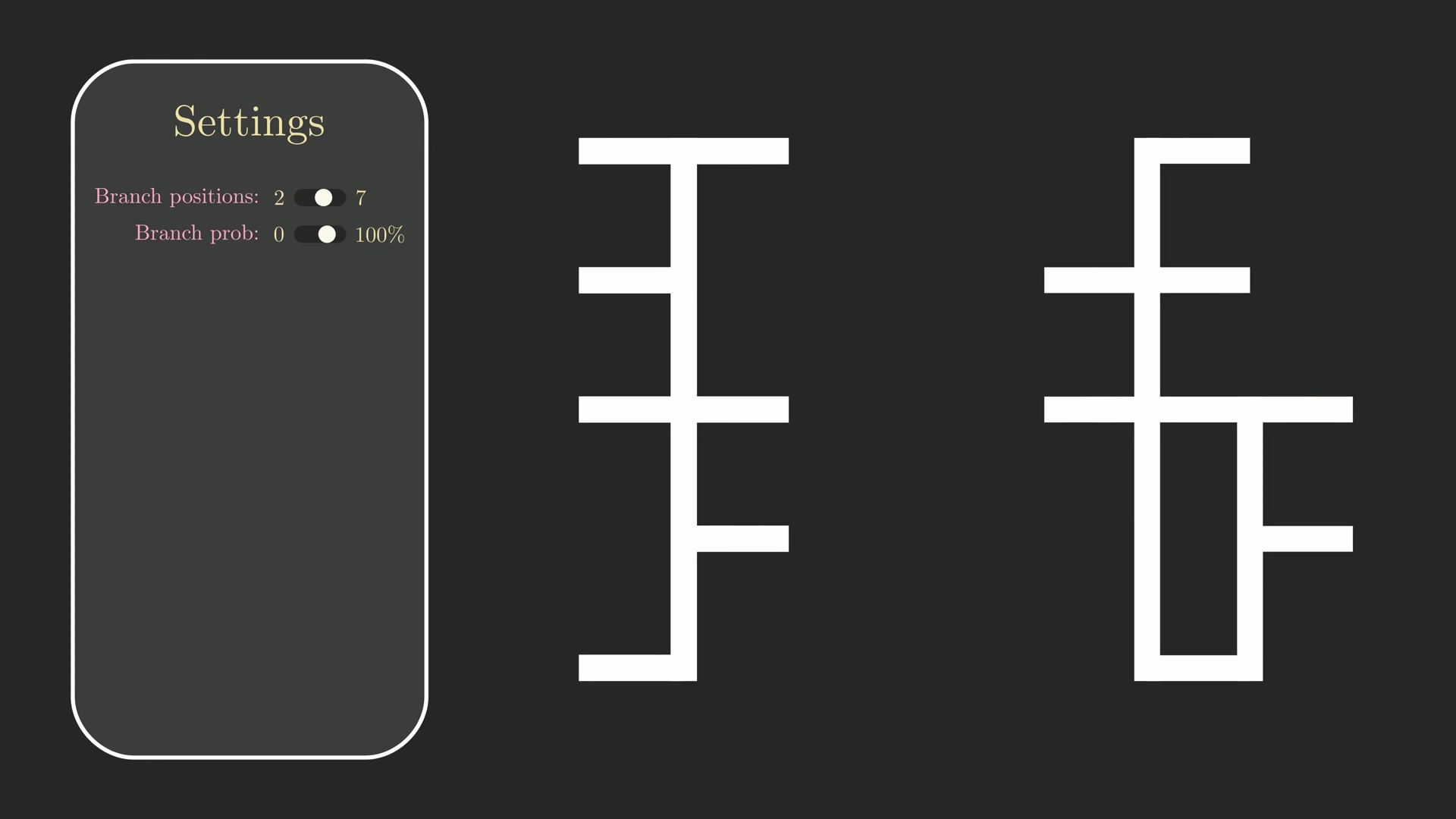

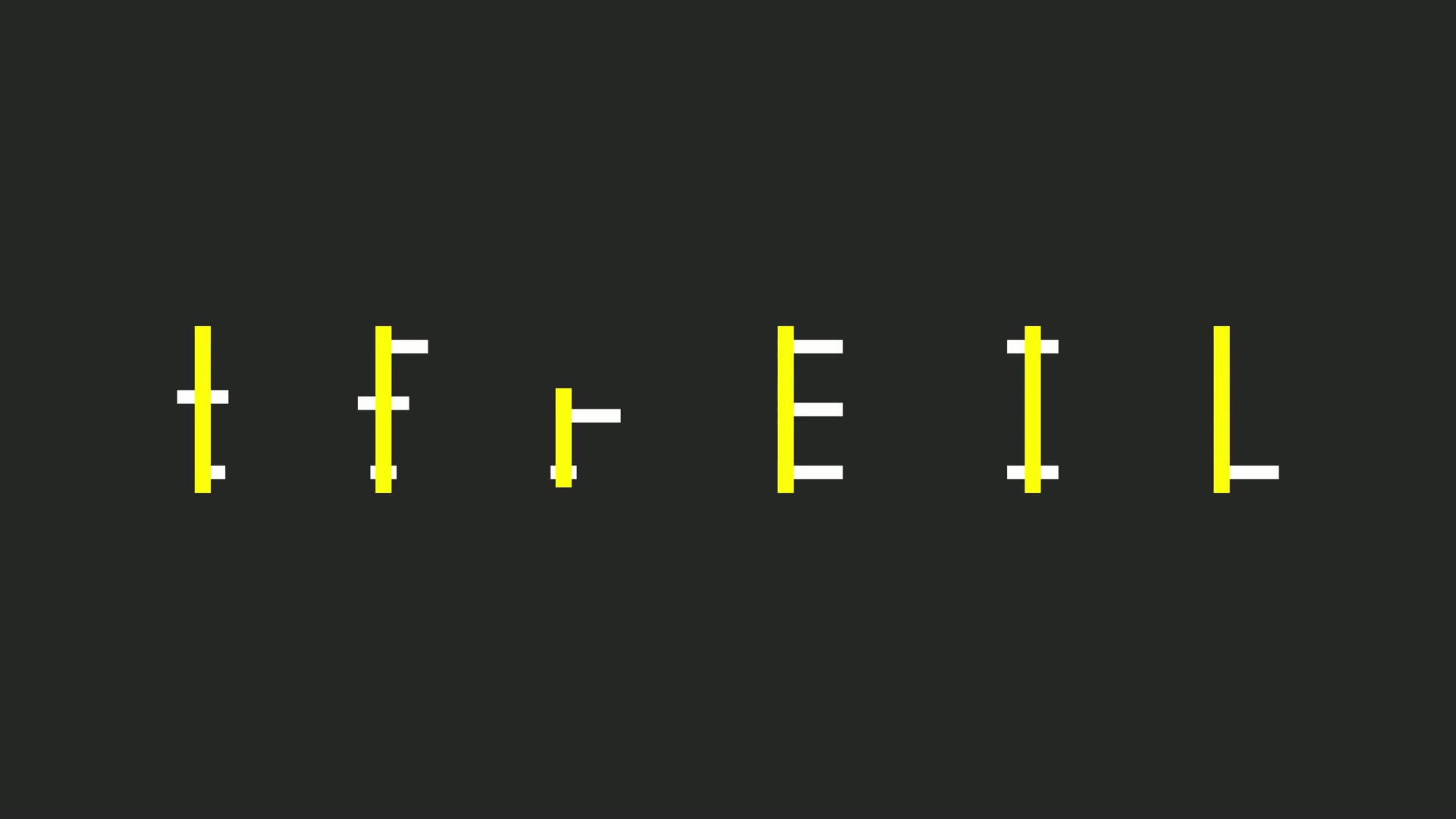

That skeleton is always the same object: a vertical spine, with a number of horizontal ribs extending from it. Letters differ only in how tall the spine is, how many ribs it has, and where along the spine they sit.

The spine is divided into a small number of discrete heights - the vDiv parameter, usually on the order of four or five - and a rib may attach at any of them. A second spine can be added alongside the first, with its own start and end height to allow for more character diversity and loops. That is the entire vocabulary of a character: one spine, sometimes two, and a scatter of ribs at fixed positions along them.

That design arrived in four steps, each of which survives as its own program in the repository. What follows is a crop of a page from each, in order, with the change that produced it.

The first version had the spine and the second spine, but the marks along them were single dots rather than ribs, and every number in it - the heights, the spacing, the number of divisions - was written directly into the code.

Replacing each dot with a short horizontal line turned it into the rib described above, and the hard-coded numbers were lifted out into named variables - vDiv, rib length, rib probability. From this point the script could be tuned from this growing set of parameters.

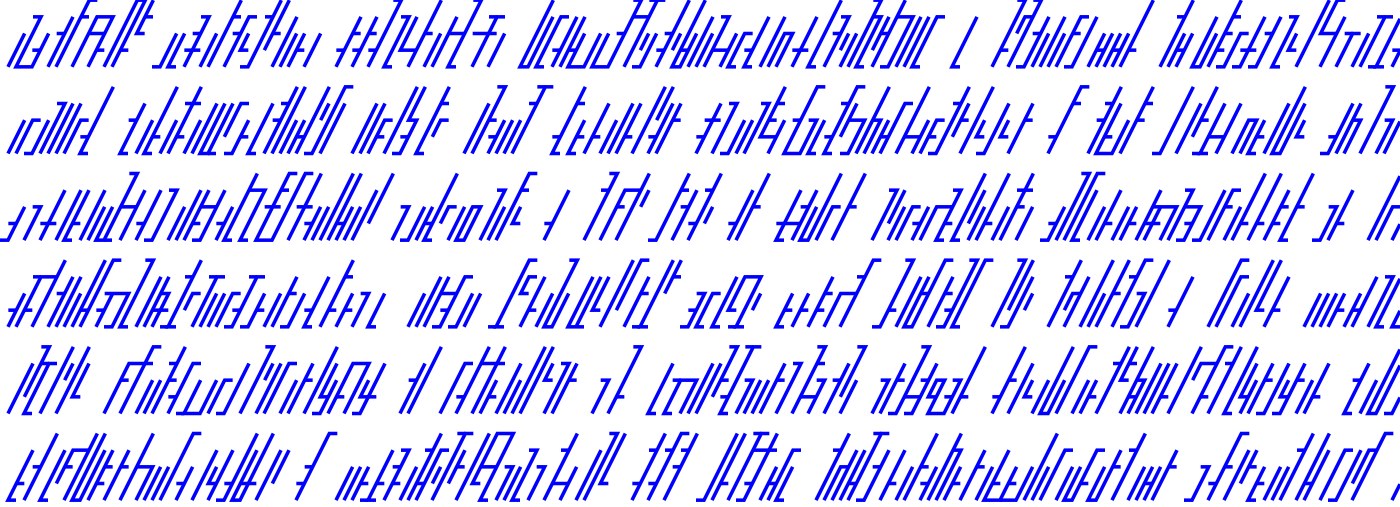

Both of those pages are a single unbroken stream of characters. Real writing is not: it is broken into words, and the words are of uneven length. So the next version grouped characters into words, drawing each word's length from a skewed distribution and inserting a wider gap at each boundary. That distribution is discussed in greater detail further down.

The page that came out has the shape of a left to right writing system - ragged right edge, visible word rhythm. However, it was still missing something quite important. Because every character was still generated fresh from the random source, it was quite rare to see the same character randomly generated more than once. Real scripts work the opposite way: a small set of shapes, used over and over, and even languages with very large sets of characters have a certain subset that are used at a high frequency.

An alphabet made of random numbers

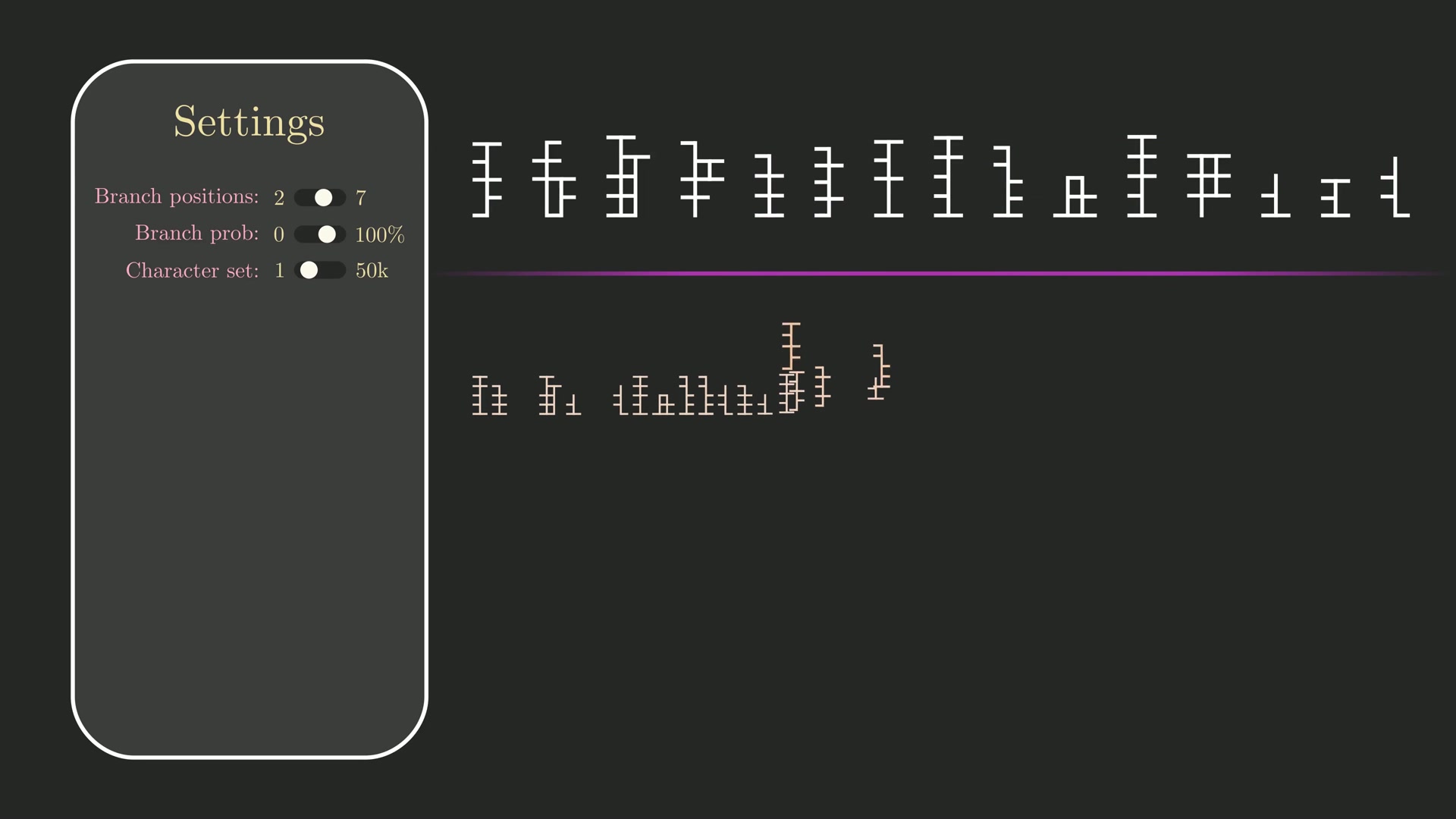

The fix is to stop generating characters at the moment of drawing them, and instead generate a fixed set once, then build words by picking from that set.

How that set gets stored is the part I am most pleased with, because the characters are not stored at all. There is no library of glyph shapes anywhere in the program. The drawing routine always asks the same questions in the same order:

Give it the same answers and it draws the same character, every time. So a character is stored as its answers - a list of random numbers, read off in order as the questions come up. The list is the letter. An alphabet is a set of those lists, generated once when the page begins; regenerate them with a different seed and you have an entirely different written language.

The fourth program implemented a basic version of this idea that I would then refine over time. You can now see consistent repeating characters rather than random unrelated shapes.

There is one deliberate omission: a character's slant and its size are not read from its number list - they come from the global random source at the moment of drawing. So every instance of a given letter has identical structure but is never quite identically drawn. Which is exactly the property real handwriting has: the same letter, twice, may have the same structure, but is not the same mark.

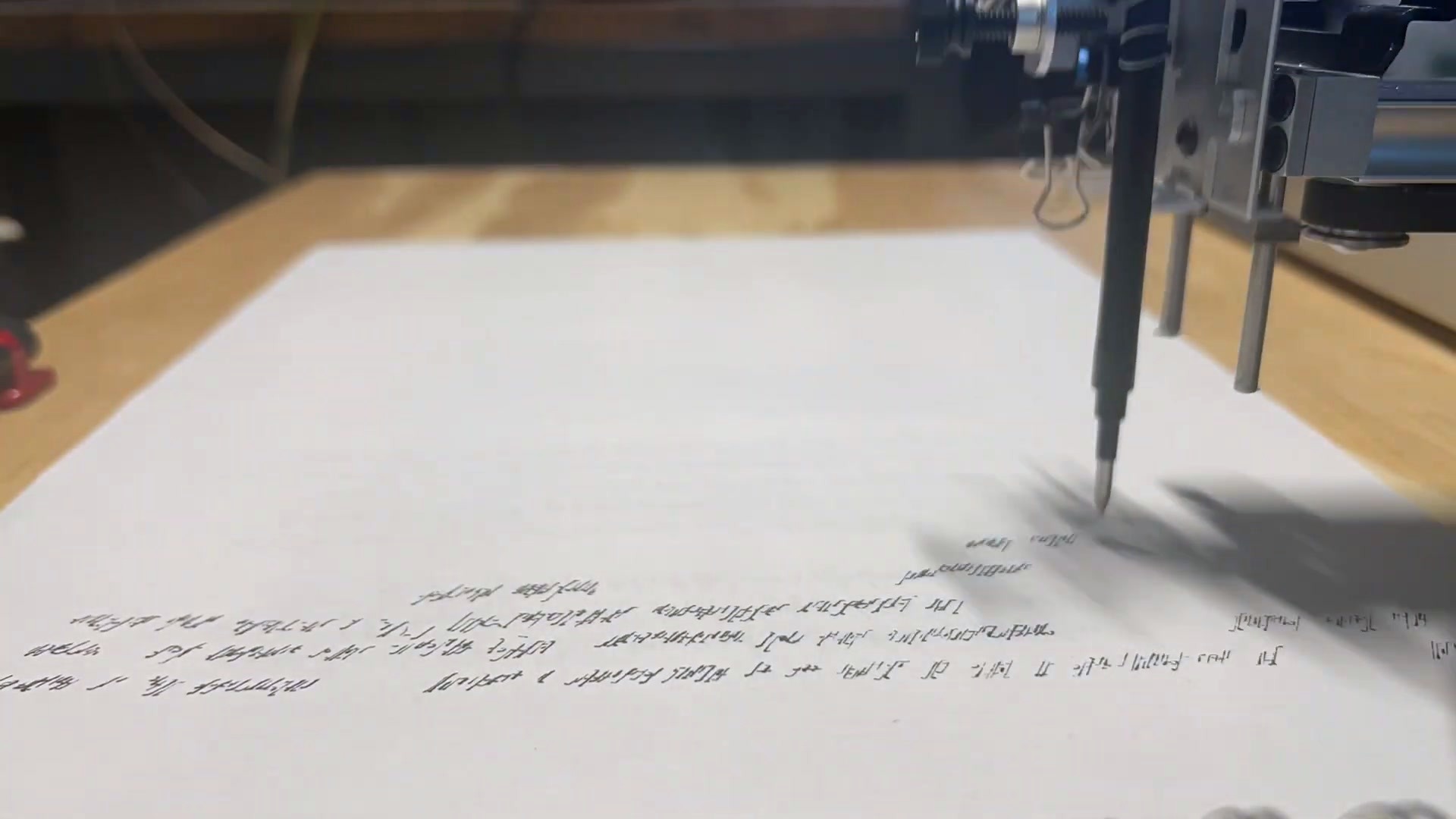

On September 9th 2024 I put the project under version control and began plotting my generated characters with my axidraw. This is when my idea of creating a generative asemic script and plotting it to look like handwriting full coalesced in my mind.

Putting It on Paper

September - November 2024

A pen plotter draws an SVG, and the usual last step before plotting is to optimize the path order so the pen wastes as little time as possible traveling between strokes with its nib lifted. vsketch does this through vpype, and the early version of Scribbler used the full chain: linemerge linesimplify reloop linesort. That last command is the optimizer - it reorders every path on the page into something close to a shortest tour. You can see the results of this optimizer in the video above.

It makes the plot faster but it takes away from the piece. The machine hops around the page plotting strokes in a seemingly random order according to this optimization algorithm. The script is designed to look like a language written left to right, top to bottom, and characters are even generated in that order. To me, the point of this piece is to recreate not just the end result of human writing, but to also recreate the process of human writing.

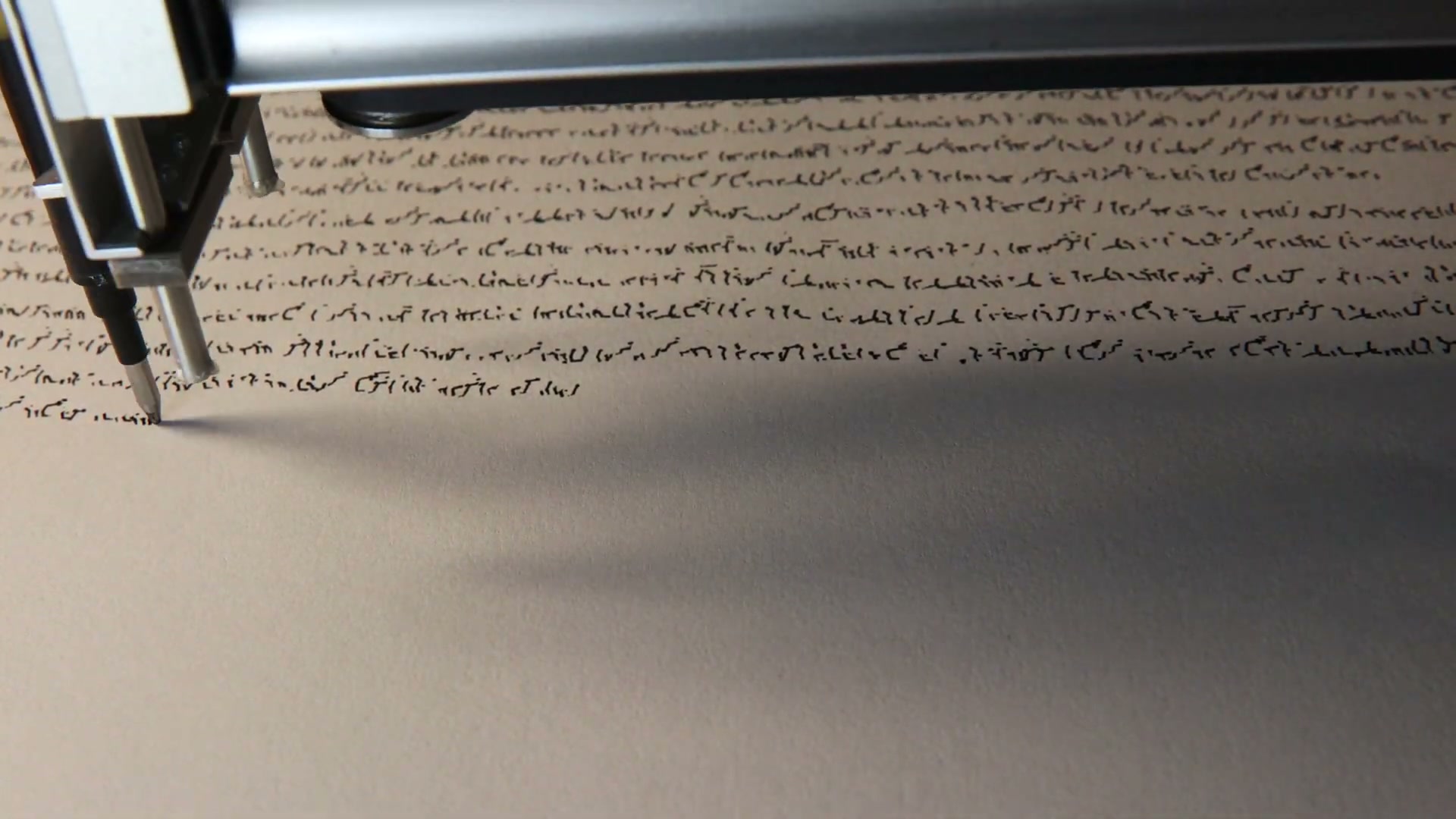

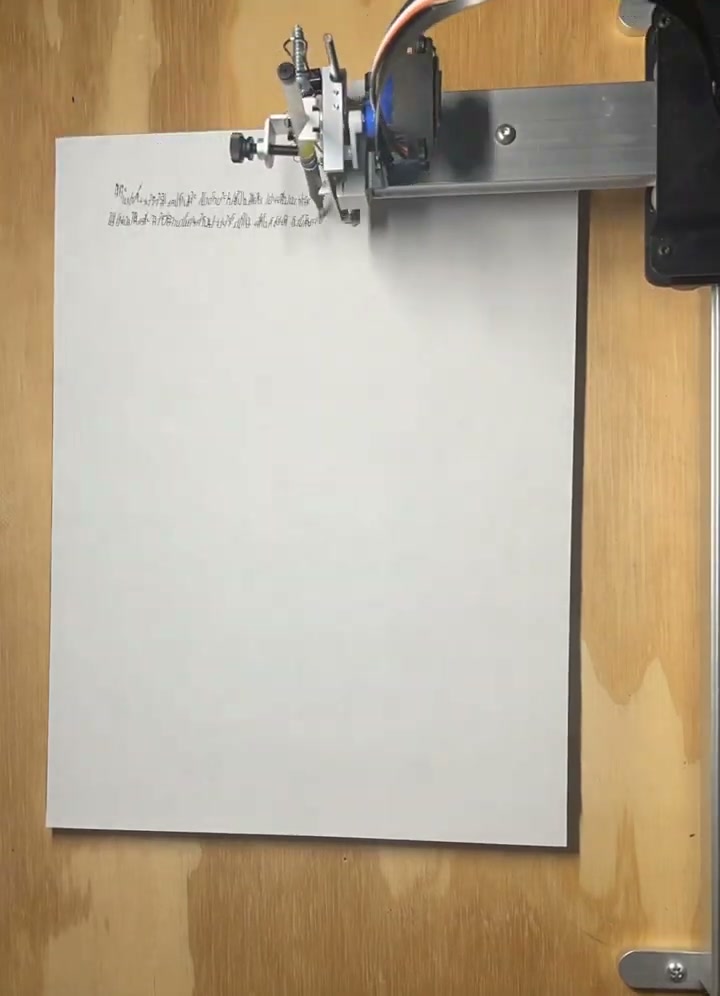

So I dropped linesort. The paths stay in the order they were generated, which is reading order, and the machine writes the page the way a person would - a little slower, but following the sequential logic of real writing.

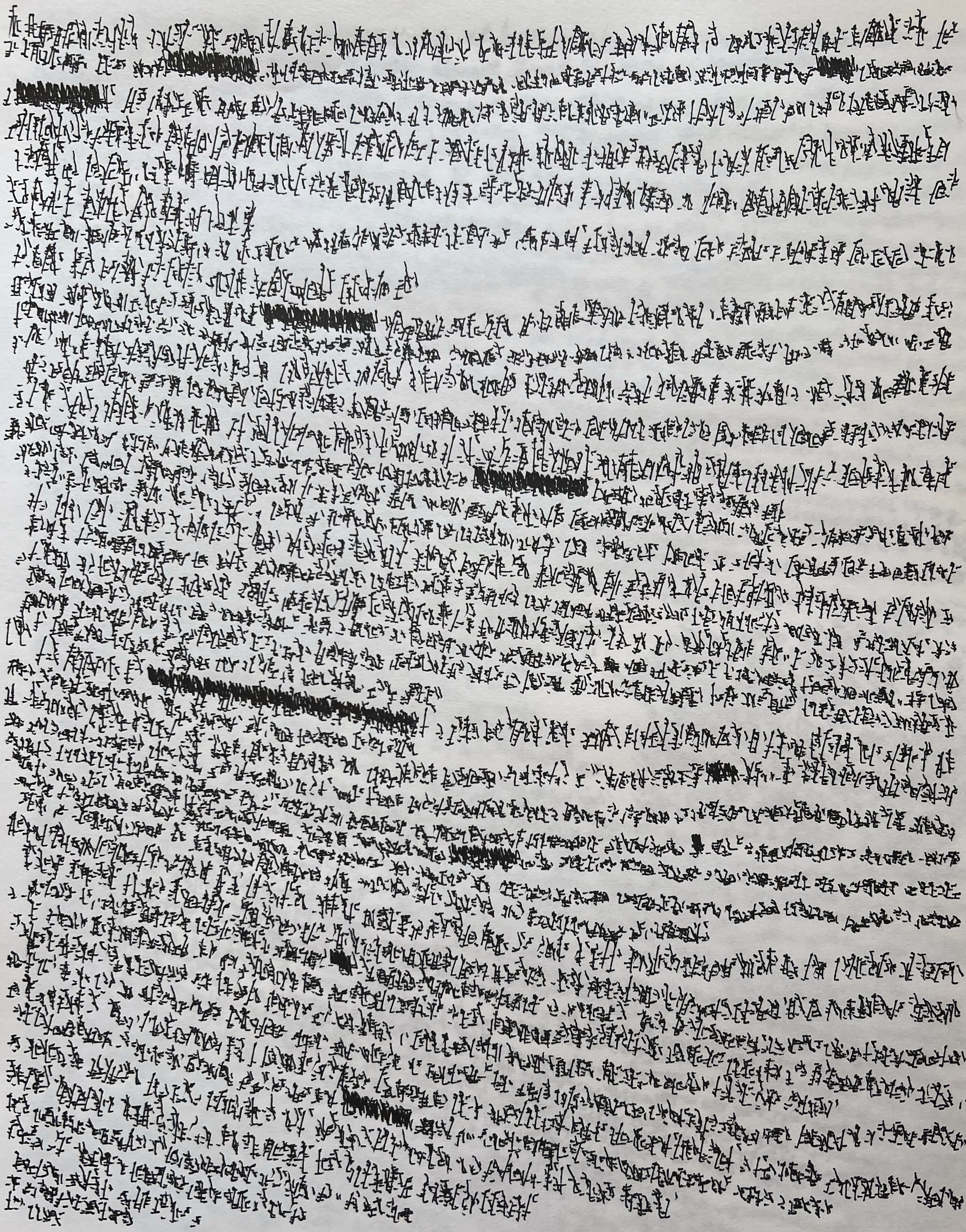

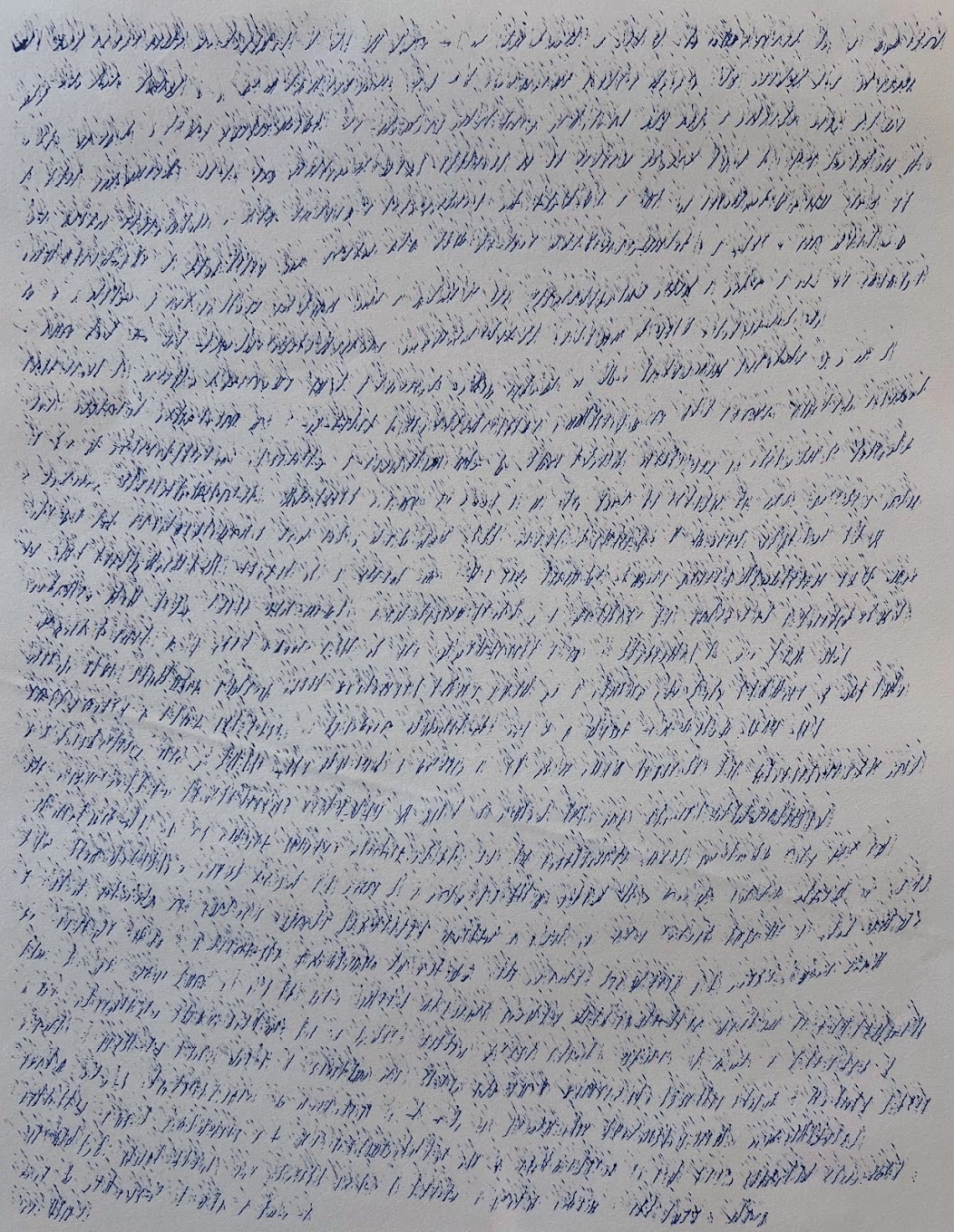

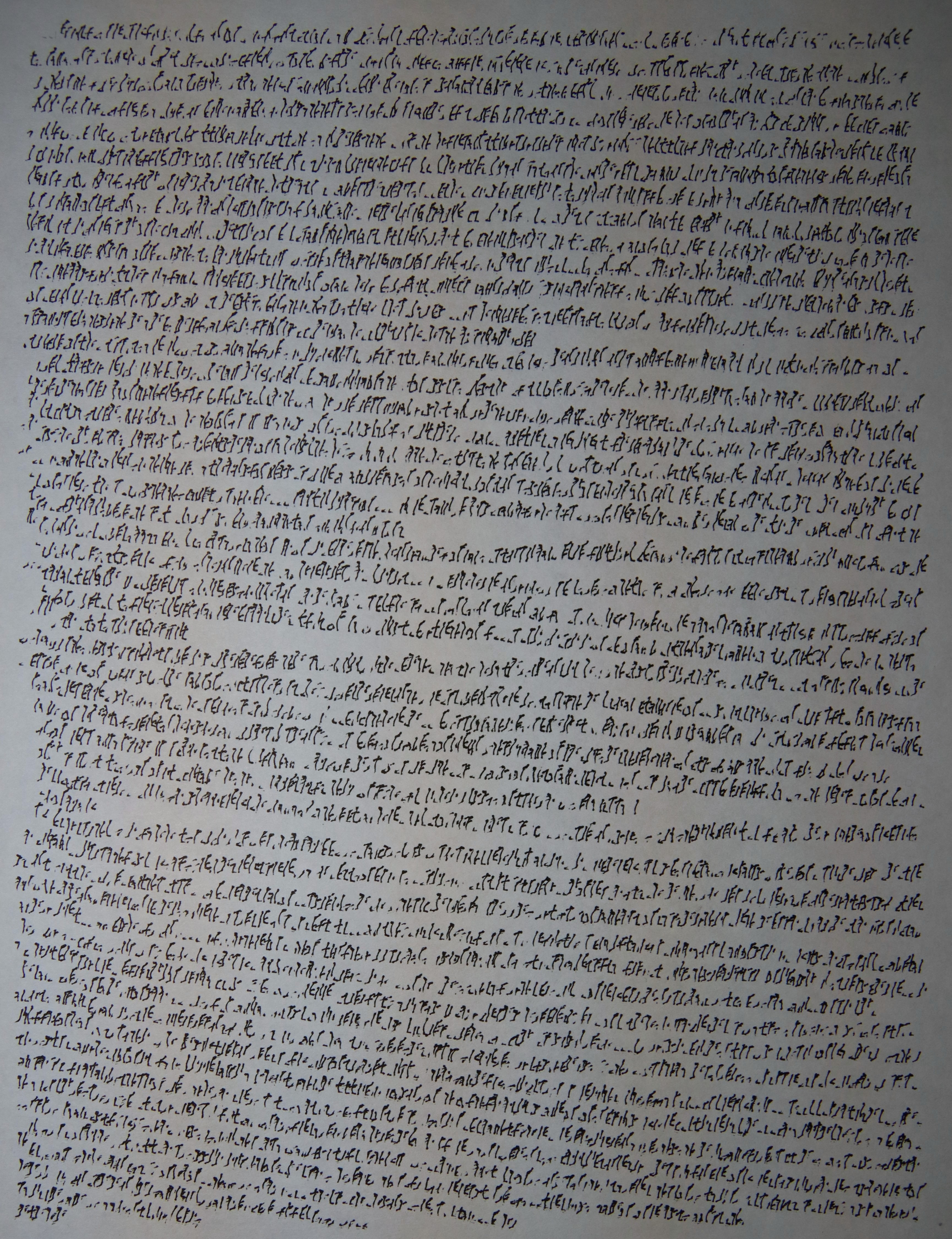

The other change between the first plots and this one is mechanical. My axidraw is precise to at least a tenth of a millimeter, and in the case of Scribbler, this is actually a bad thing. I wanted to create handwriting that looked like it could have been written by a person, and a person does not consistently have such a high degree of precision. I will later discuss many of the computational sources of noise I added to offset this precision, but there was a quite elegant and almost stupid improvement I could add right away: a loose spring. Instead of rigidly attaching my pen to the axidraw, I attached the pen to a spring, and that spring to the axidraw, producing an underactuated system. Adjusted properly, the spring produces a soft organic wobble - the pen wanders very slightly, the way a hand does.

Making It Read as Language

October - November 2024

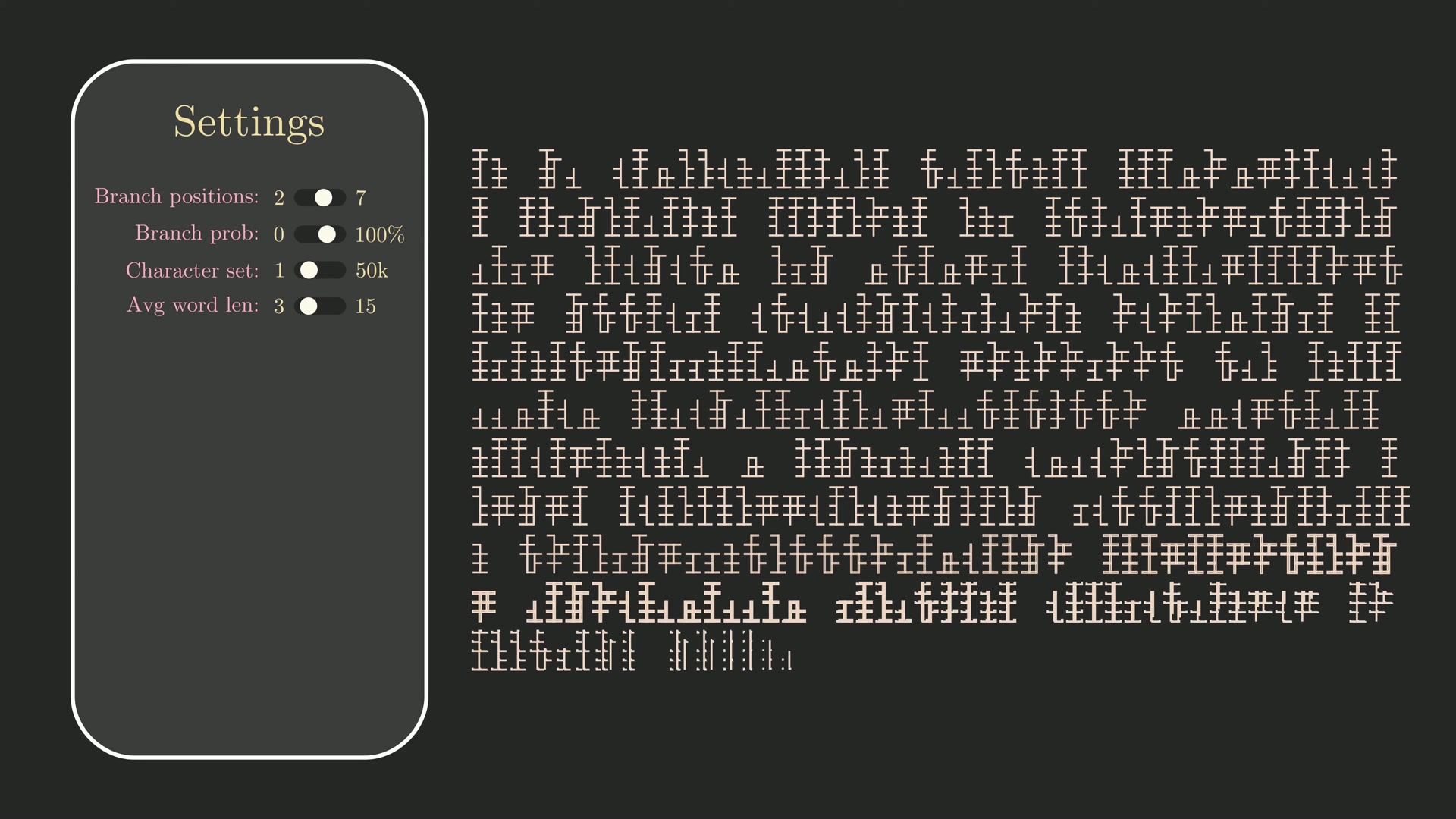

A page of correctly-formed characters still does not read as writing. What sells it is everything above the level of the character: how many distinct symbols there are, how long words run, how lines sit relative to each other, and how imperfectly the whole thing is executed.

How large should the alphabet be?

Too few characters and the repetition is obvious - you start seeing the same shape three times in a line and the illusion dies. Too many and nothing ever repeats, which reads as noise rather than language.

The useful distinction is between phonographic scripts, where characters stand for sounds and the set stays small, and logographic ones, where characters stand for words or concepts and the set is enormous. English runs 26 letters, Georgian 33, Armenian 39; written Chinese has on the order of fifty thousand characters. Sticking with our latin inspiration, Scribbler sits at the phonographic end, generally around thirty.

How long should words be?

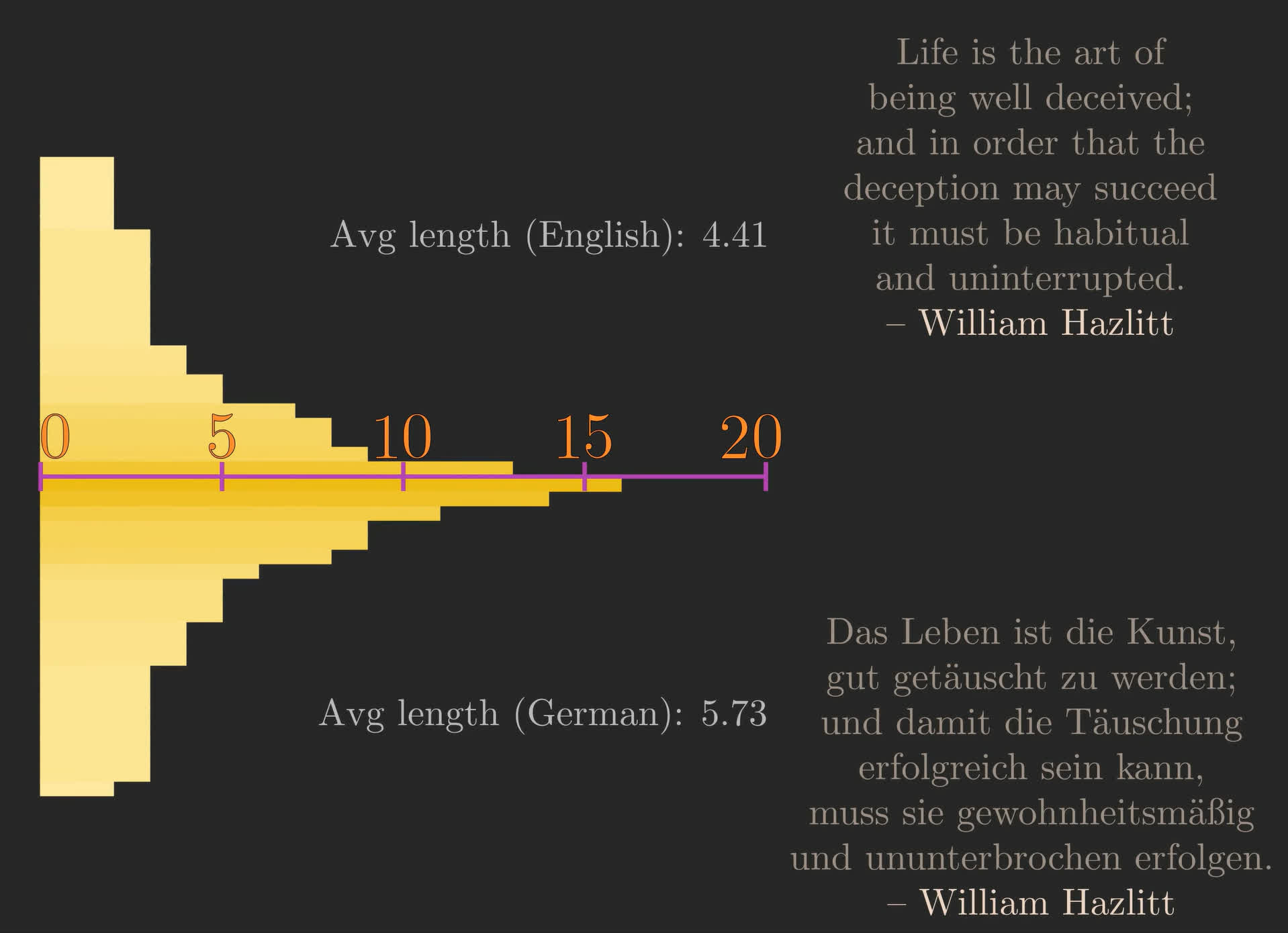

Word length is not uniform in any language and it is not normally distributed either - it is heavily skewed, with a hard floor at one character and a long tail of rare long ones. Scribbler draws each word's length from the absolute value of a normal distribution, which gives exactly that shape: mostly short words, a scattering of long ones, nothing of length zero.

The standard deviation of this normal distribution is a parameter in the code, so the script can be tuned toward the short-word feel of English or the longer compounds of German.

Lines that avoid each other

This is my favorite mechanism in the whole program, and it came directly from staring at handwritten pages.

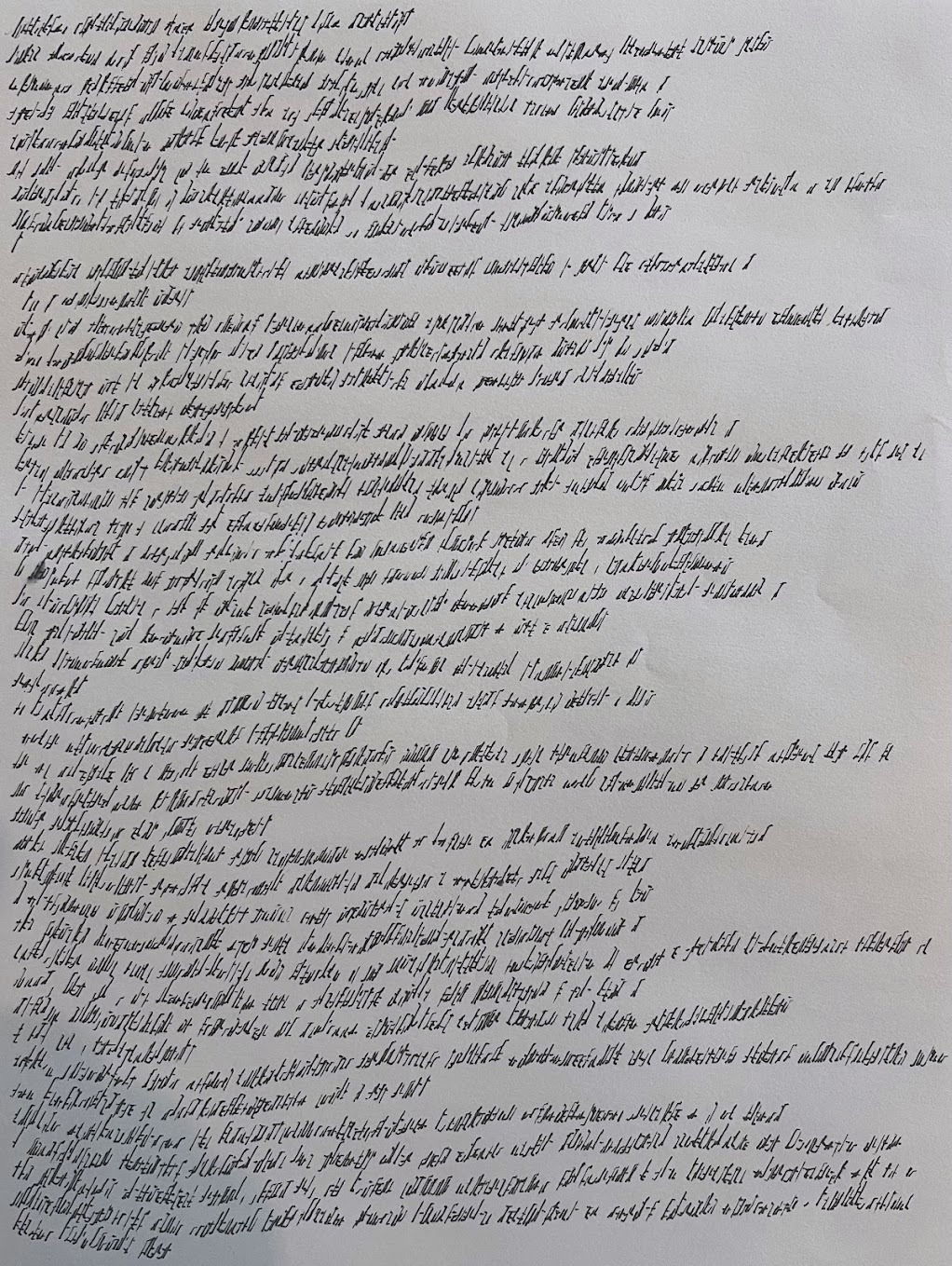

When you write by hand on unruled paper, your lines are not evenly spaced and they are not straight. However, they tend not to collide. If a letter on one line has a long descender, the line beneath it quietly bends out of the way; if the line above happens to sag, you write a little lower. You do this without thinking about it, and it is a large part of why handwriting looks organic rather than typeset.

I reproduced this same mechanism for Scribbler. The program keeps a record of the vertical position of every character on the previous line. When it places a character, that character's vertical offset is the maximum of two things: where the previous character on this line sat, plus a small random nudge, and how low the line above came down at this exact horizontal position.

The consequence is that lines physically push each other down. A descender on one line dents the line below it. A short stretch lets the next line ride up. Collisions cannot occur - the same rule that generates this up-down wiggle is the rule that prevents the overlap, all according to the same mechanisms implicitly at play in true handwriting.

Imperfection as a parameter

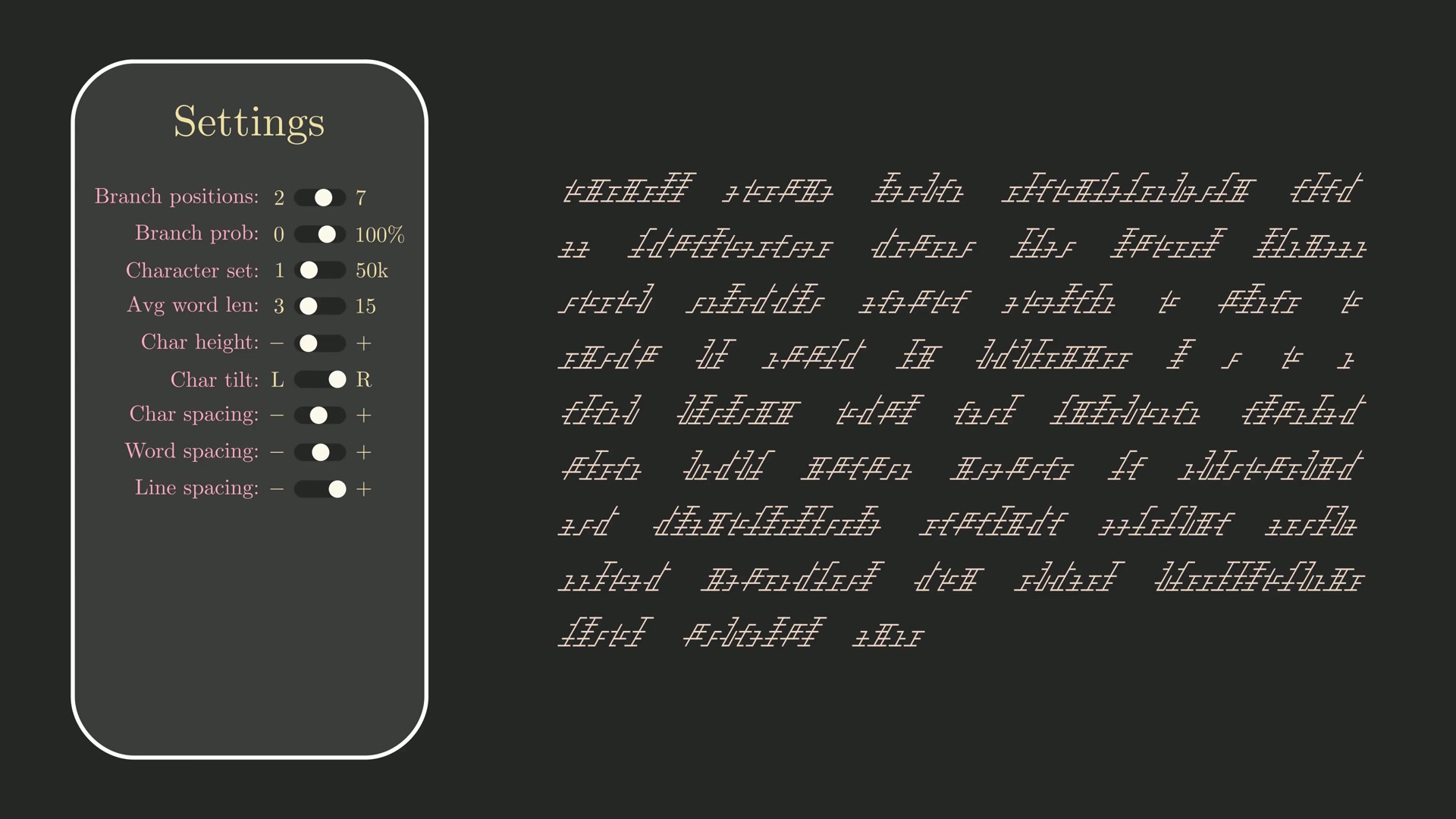

The rest of the realism is a set of controlled defects, each with its own knob: how much a character's vertical strokes slant, and how much that slant varies between characters; how much letter size varies within a line and between one line and the next; how far each new line starts left or right of the last; how much characters shrink as the page goes on, the way a hand tires or compresses to fit the remaining space.

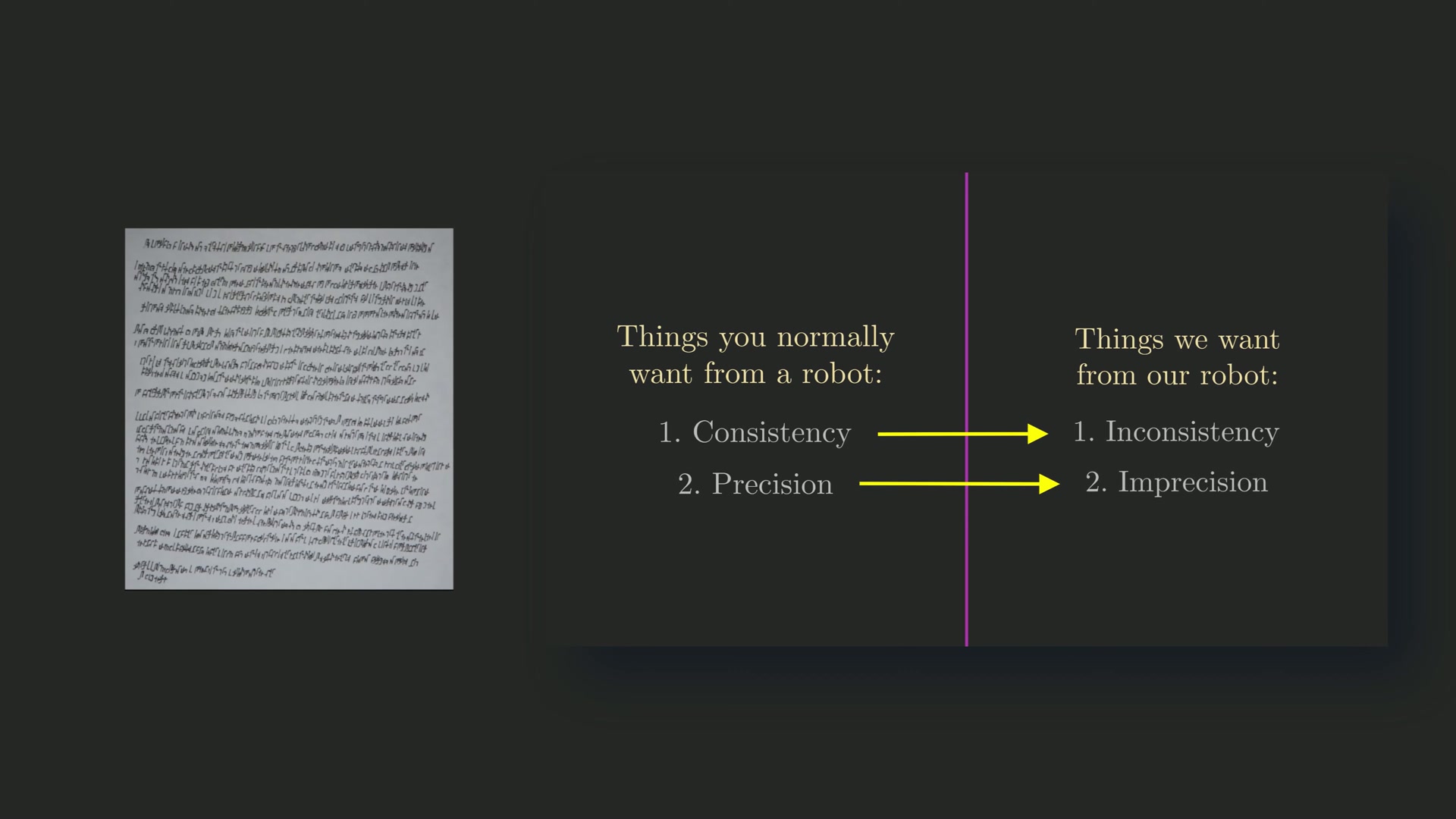

Many of my goals with Scribbler are the opposite of what you may normally want from a machine.

Style as Meaning

November 2024

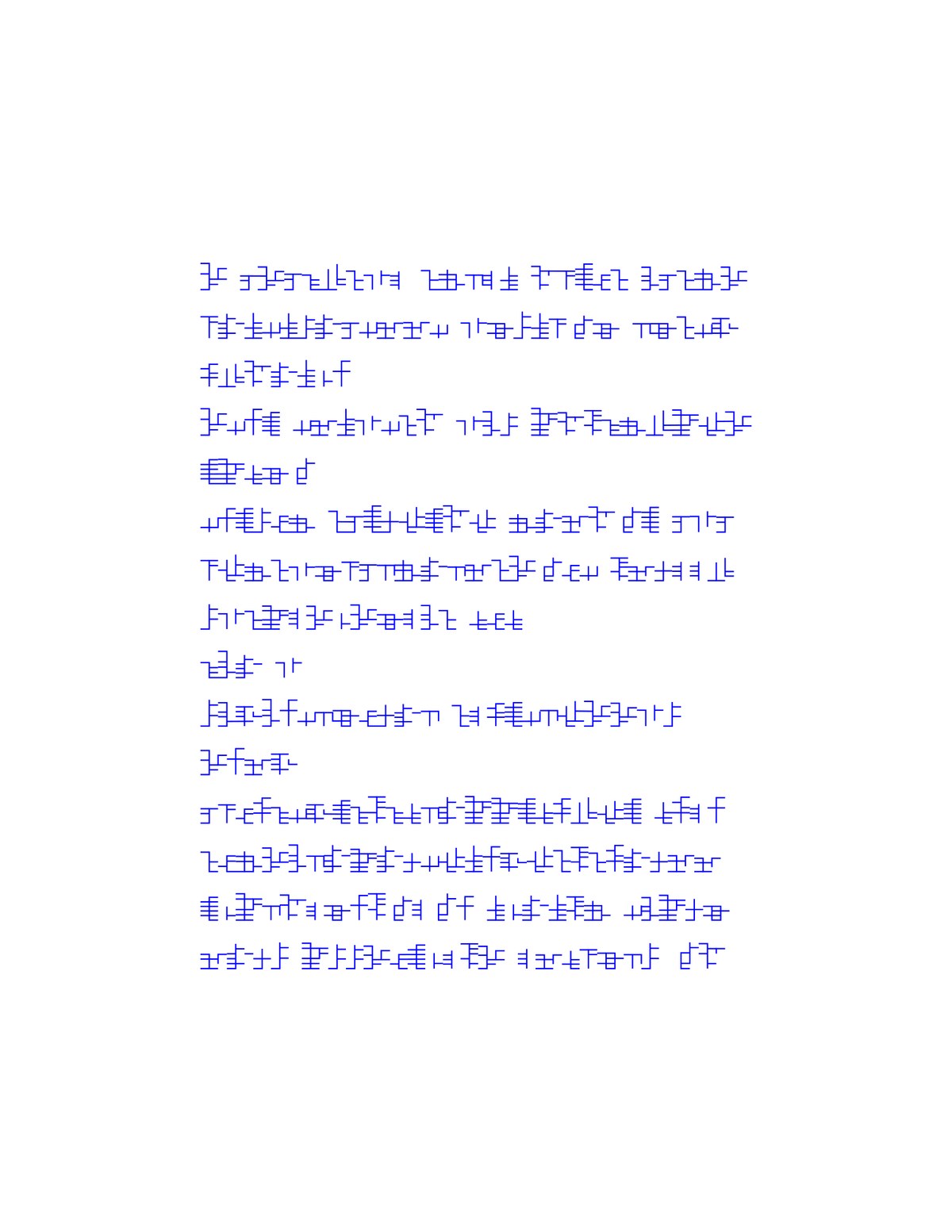

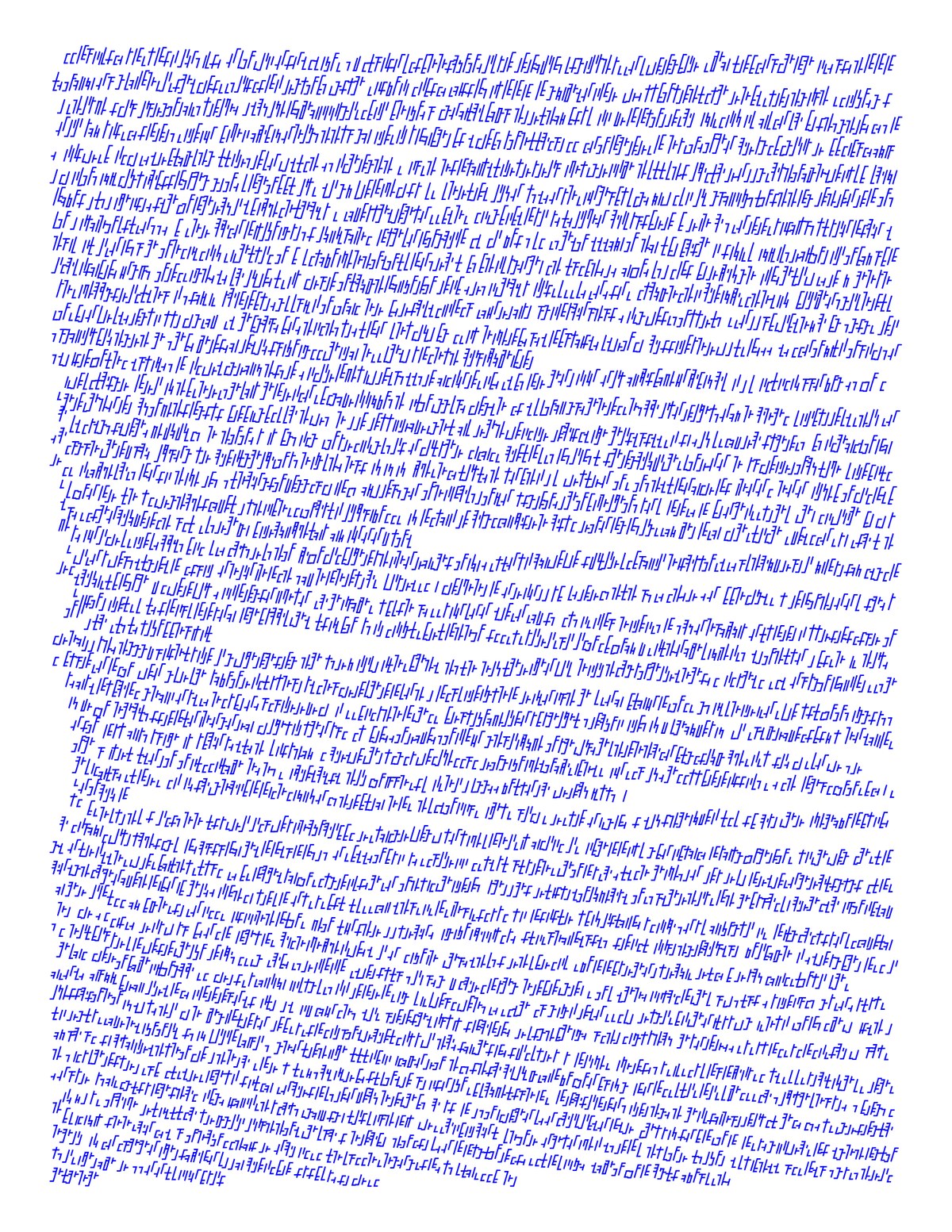

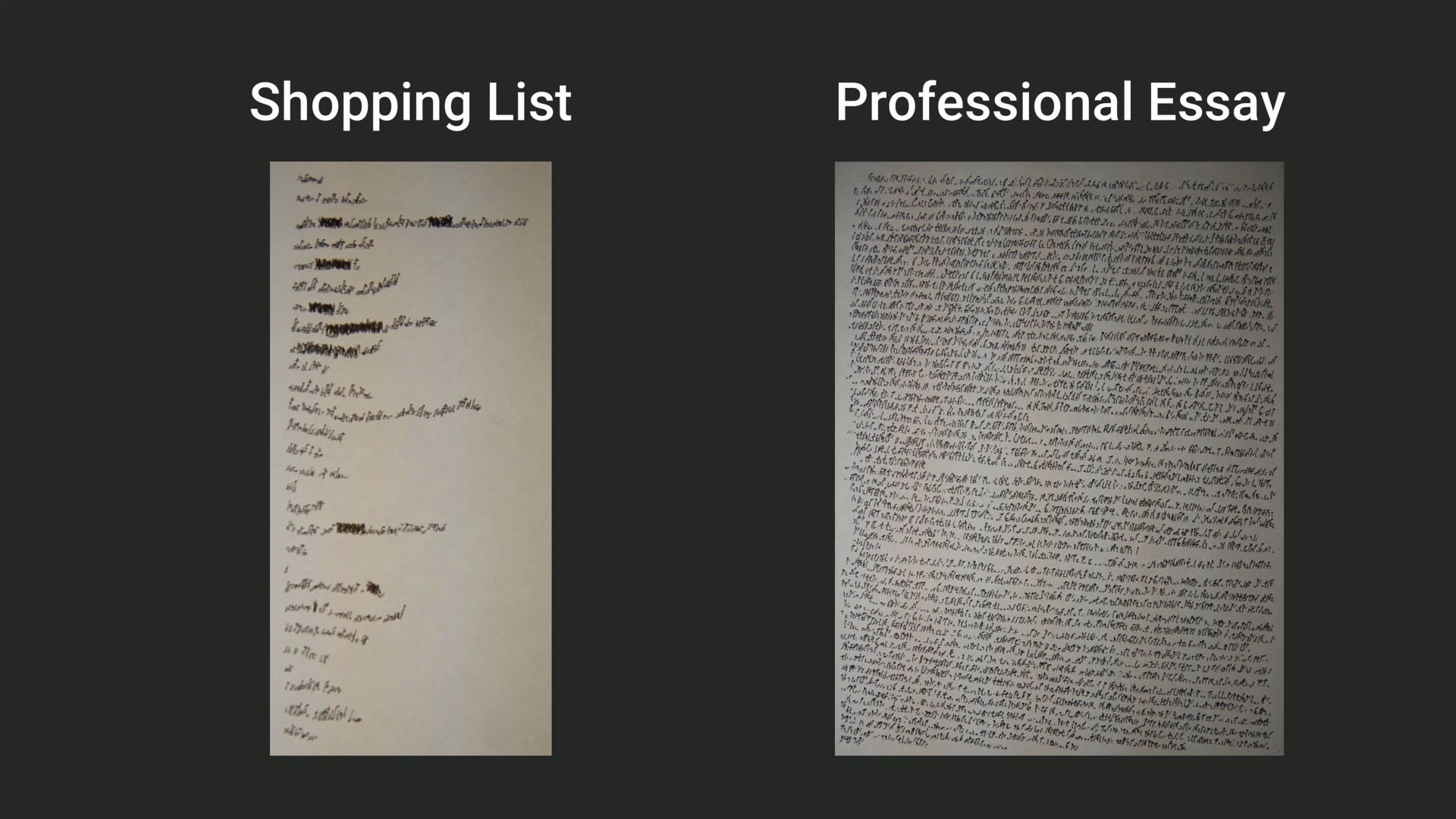

The script is meaningless by construction - there is nothing to read, and no amount of study will yield a translation. But the page is not meaningless. Set the lines far apart, keep the characters upright and the margins generous, and you communicate a certain style, or even emotion, of writing. Compress the spacing, tilt everything, let the line starts scatter, and add passages struck through, and you get something a reader understands as chaotic, rushed. Make the characters huge and wobbly and irregular and you imply a hand not able to write well.

Without being able to read a single word, the script communicates something: who was writing, how quickly, how carefully, and to what end. That information does not live in the words, because there are no words. It lives entirely in the way the marks sit on the page - and it survives the complete absence of content.

I built seven presets to explore this.

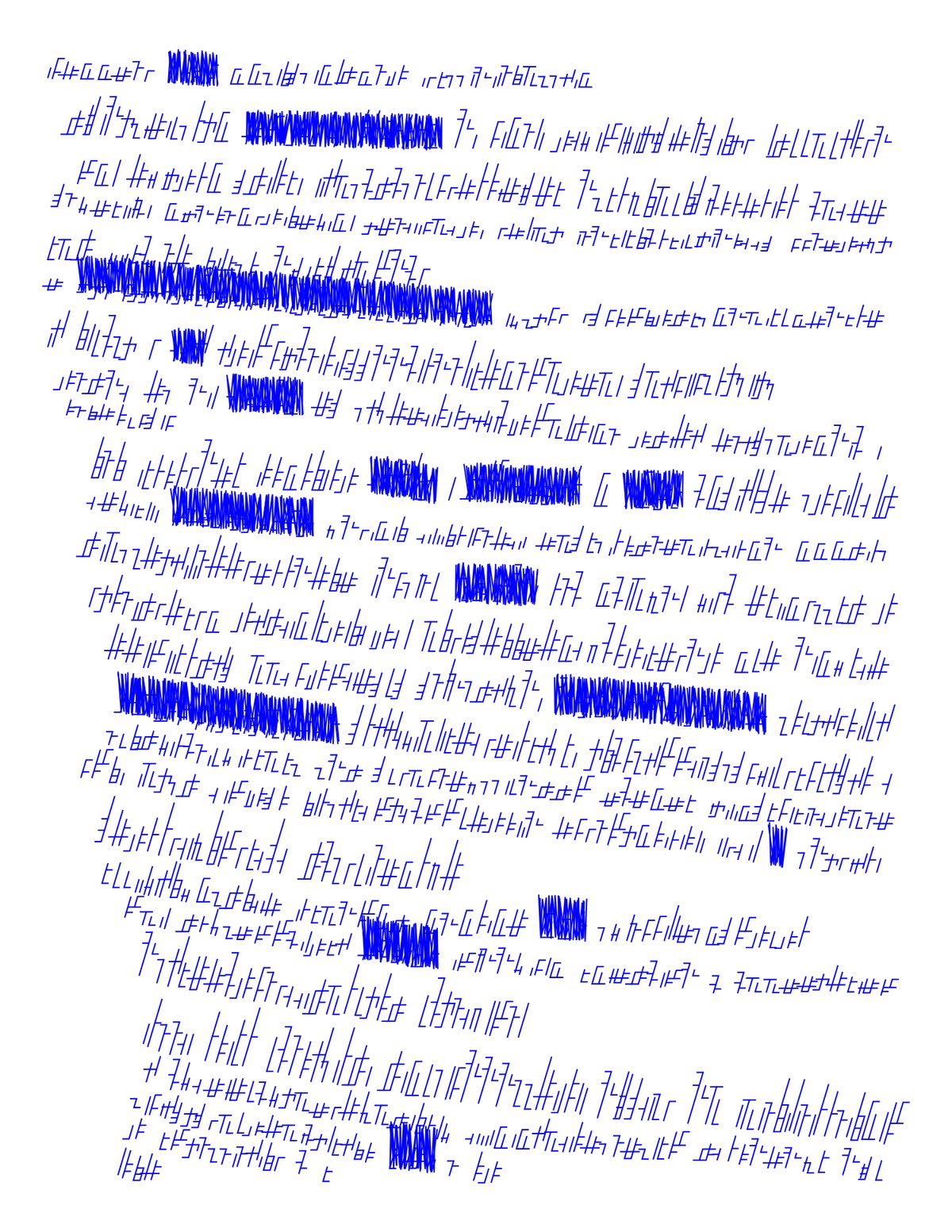

The struck-through passages in several of these are their own small feature: a scribble routine that draws over a run of words, ending with a controllable probability at each word boundary, plus an underline variant. Crossing something out is a gesture with no linguistic content whatsoever, and it is one of the strongest signals of thought and intent while writing.

The PurpleMind Collaboration

November 2024

I made a video about the project with the educational YouTube channel PurpleMind, published at the end of November 2024. Most of the diagrams in this write-up are frames from it.

The video is documentation rather than part of the piece, but making it forced two things that were useful to the work itself.

A second renderer

The animations were built in Manim, which draws filled polygons rather than the single-thickness paths a pen plotter needs. Rather than rebuild the script in another tool - which would have meant maintaining two versions that drift apart, and animating something subtly different from what actually plots - I added a drawQuads flag to the generator.

With the flag off, every stroke is emitted as a plottable line. With it on, the identical generation logic emits Manim-compatible quads instead. Same seeds, same alphabet, same page: one output goes to the Axidraw, the other into the video.

Explaining it forced me to understand it

Writing the script for a general audience meant every arbitrary choice had to be justified out loud, and several turned out not to be justifiable. The alphabet-size and word-length figures were researched jointly for the video, and the reasoning about phonographic versus logographic scripts came out of those conversations. Preparing the project to be read by strangers is also what produced the presets, the README, and a more organized repository - the version anyone can actually download and run.

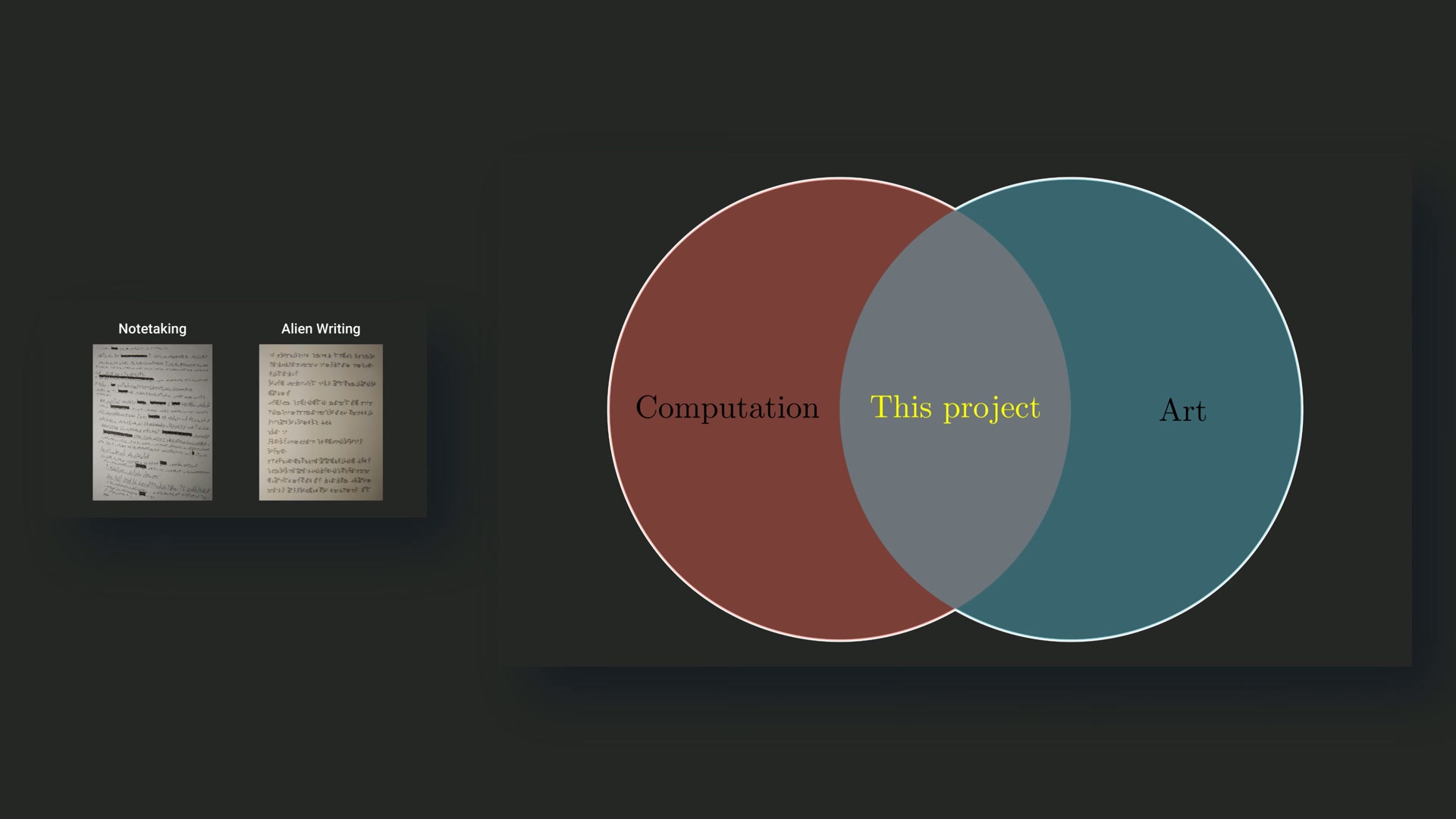

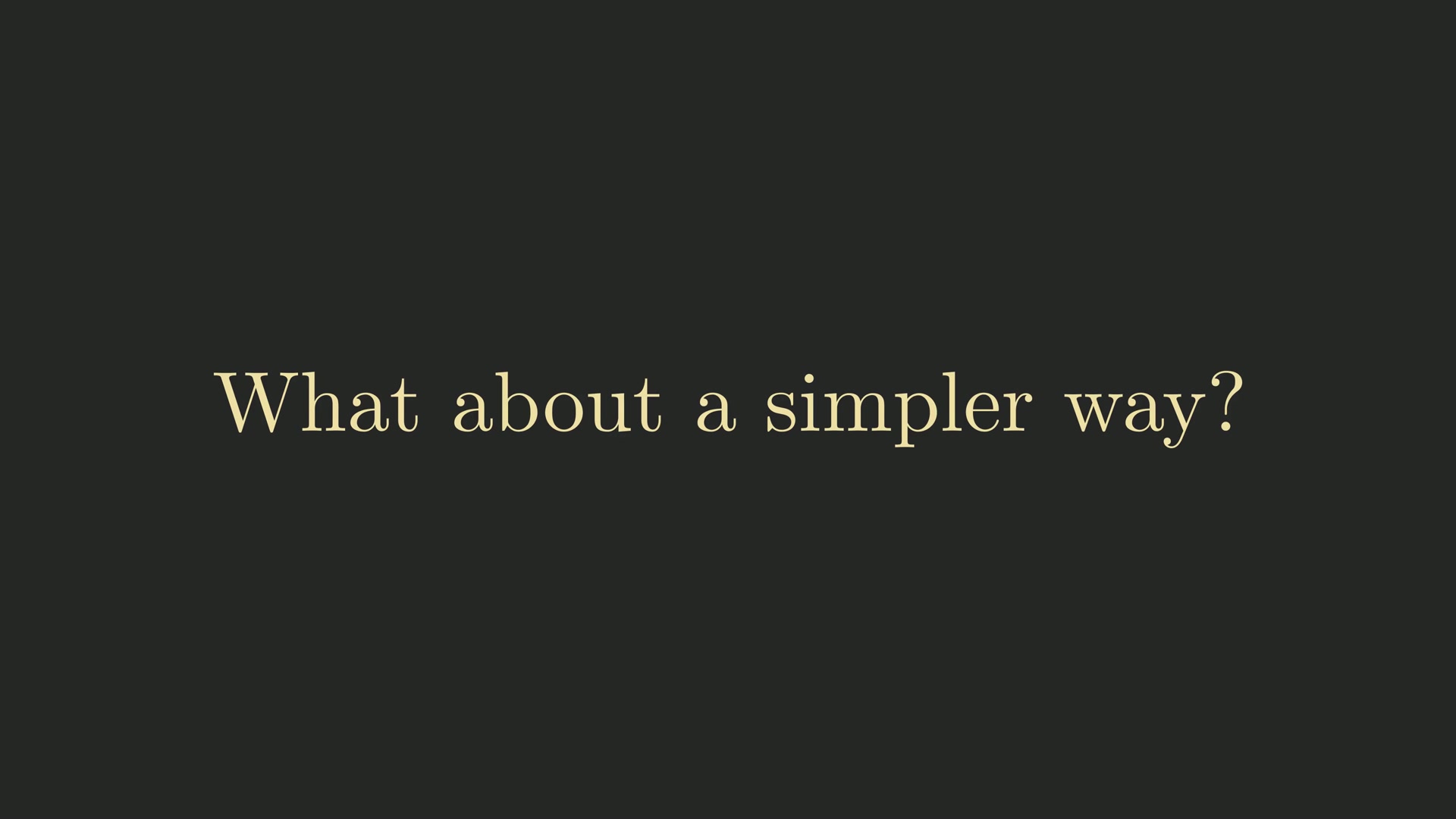

The closing idea of the video is the one I would most want to keep. Complicated generative results do not require complicated means. It is very tempting in this day and age to relegate the modeling of complex systems to powerful AI systems, but often simple rules underlie complex results.

Exhibition

April 2025 and April 2026

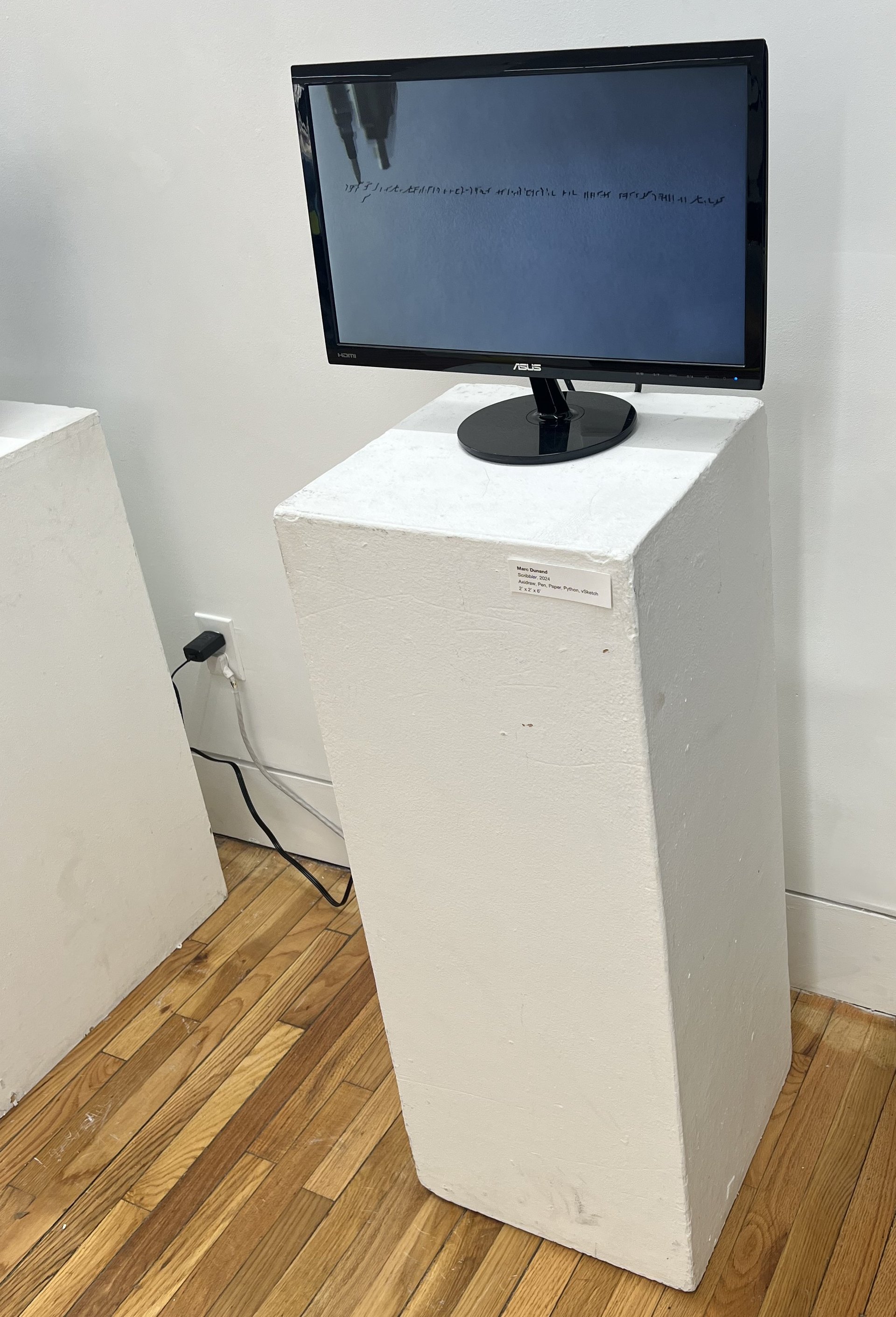

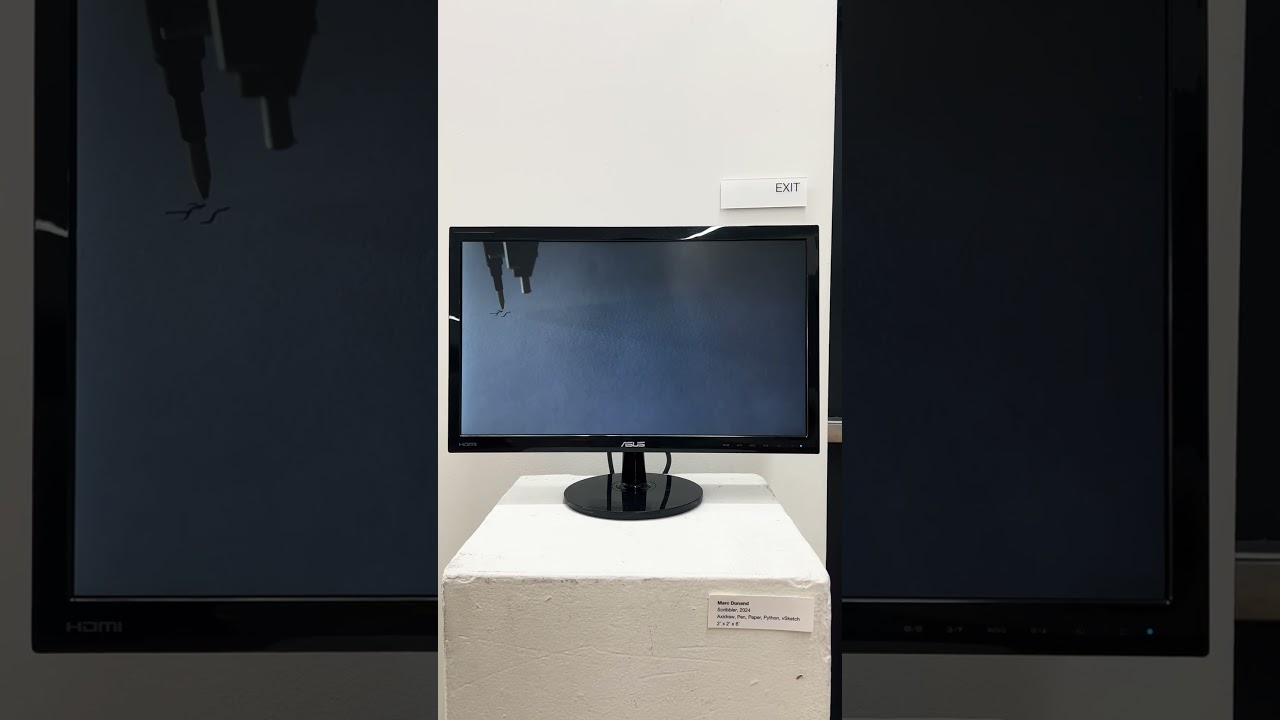

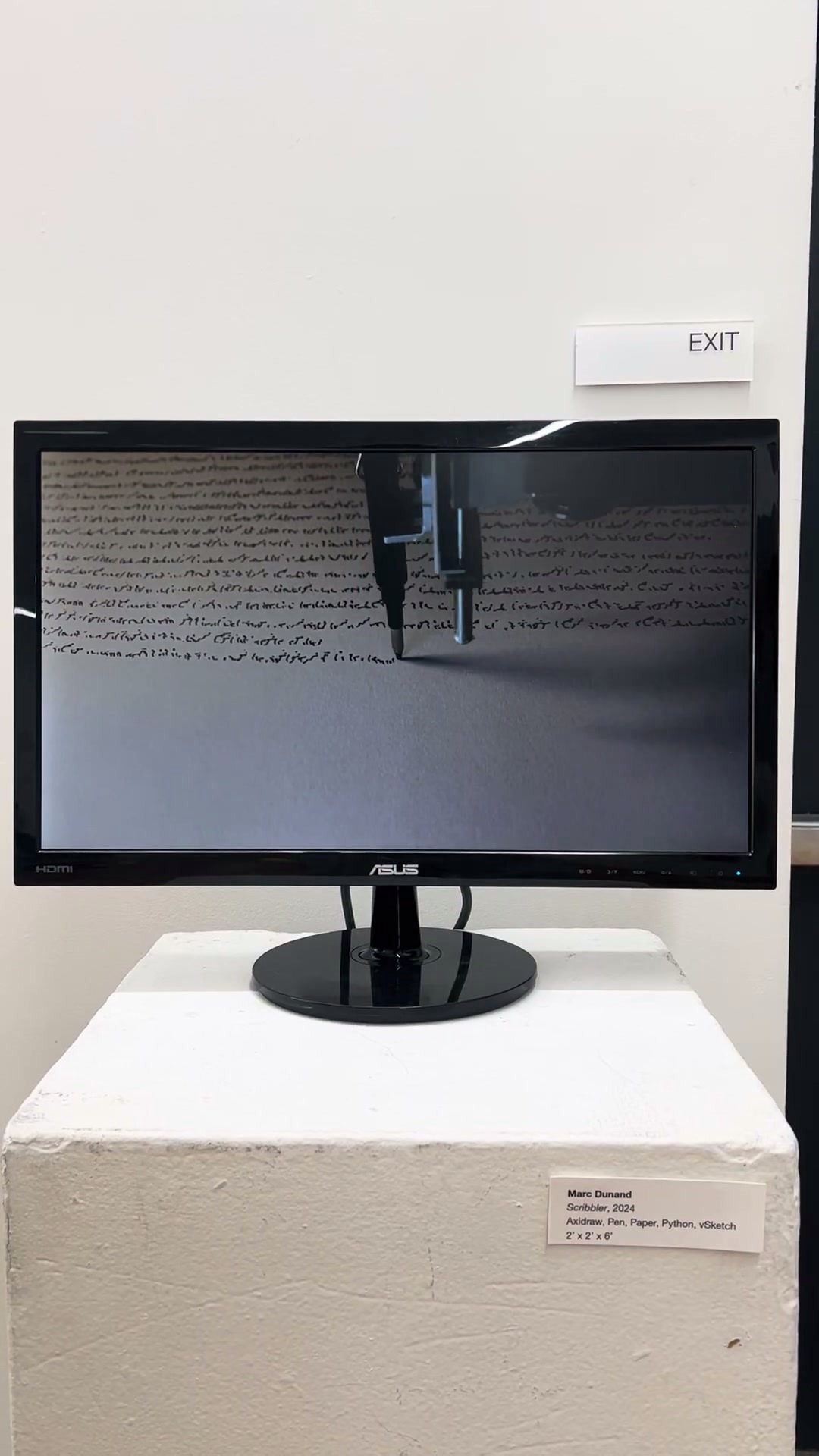

Scribbler was first exhibited at The Frame Gallery in Pittsburgh in April 2025:

Standing the machine up

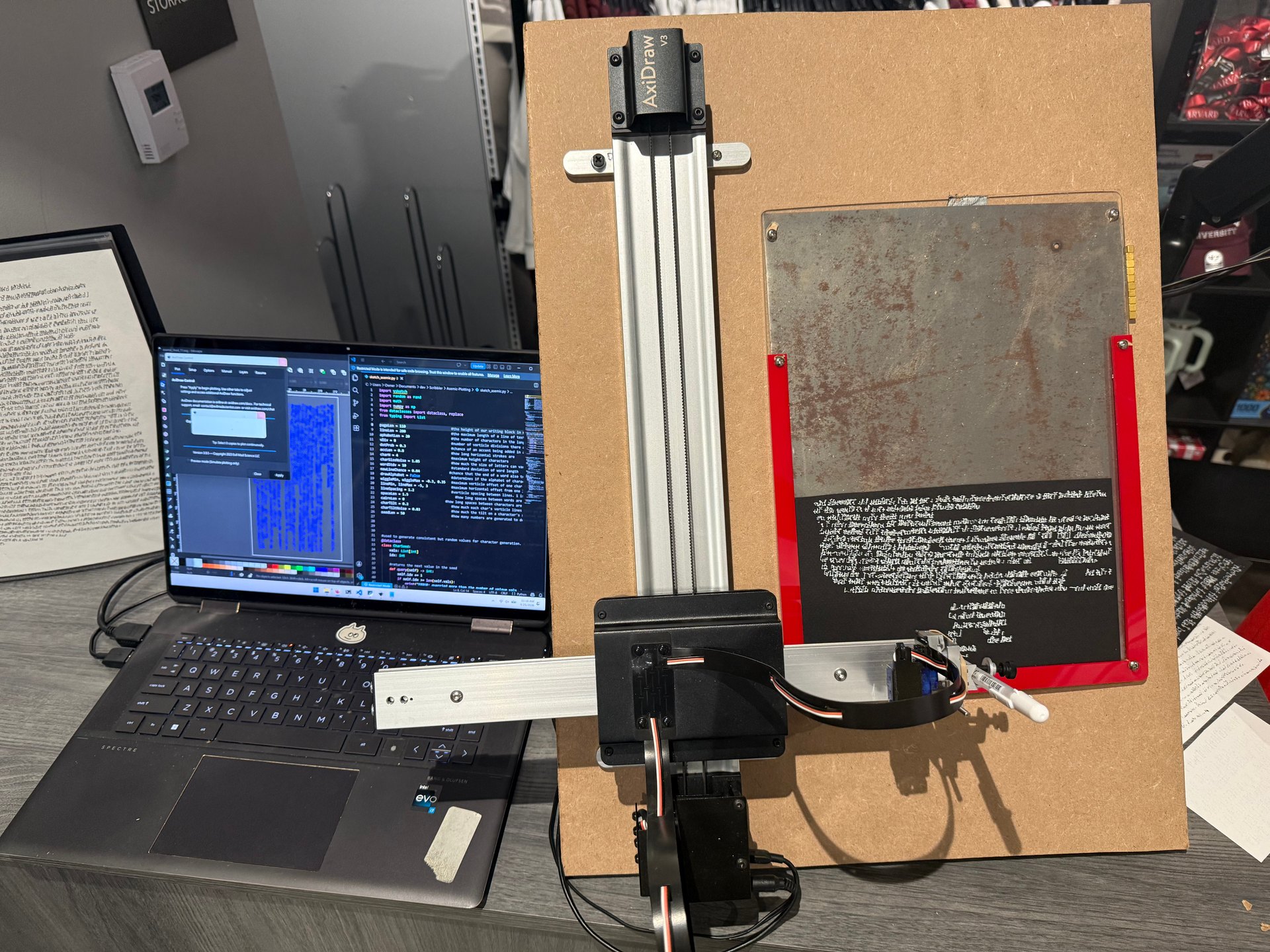

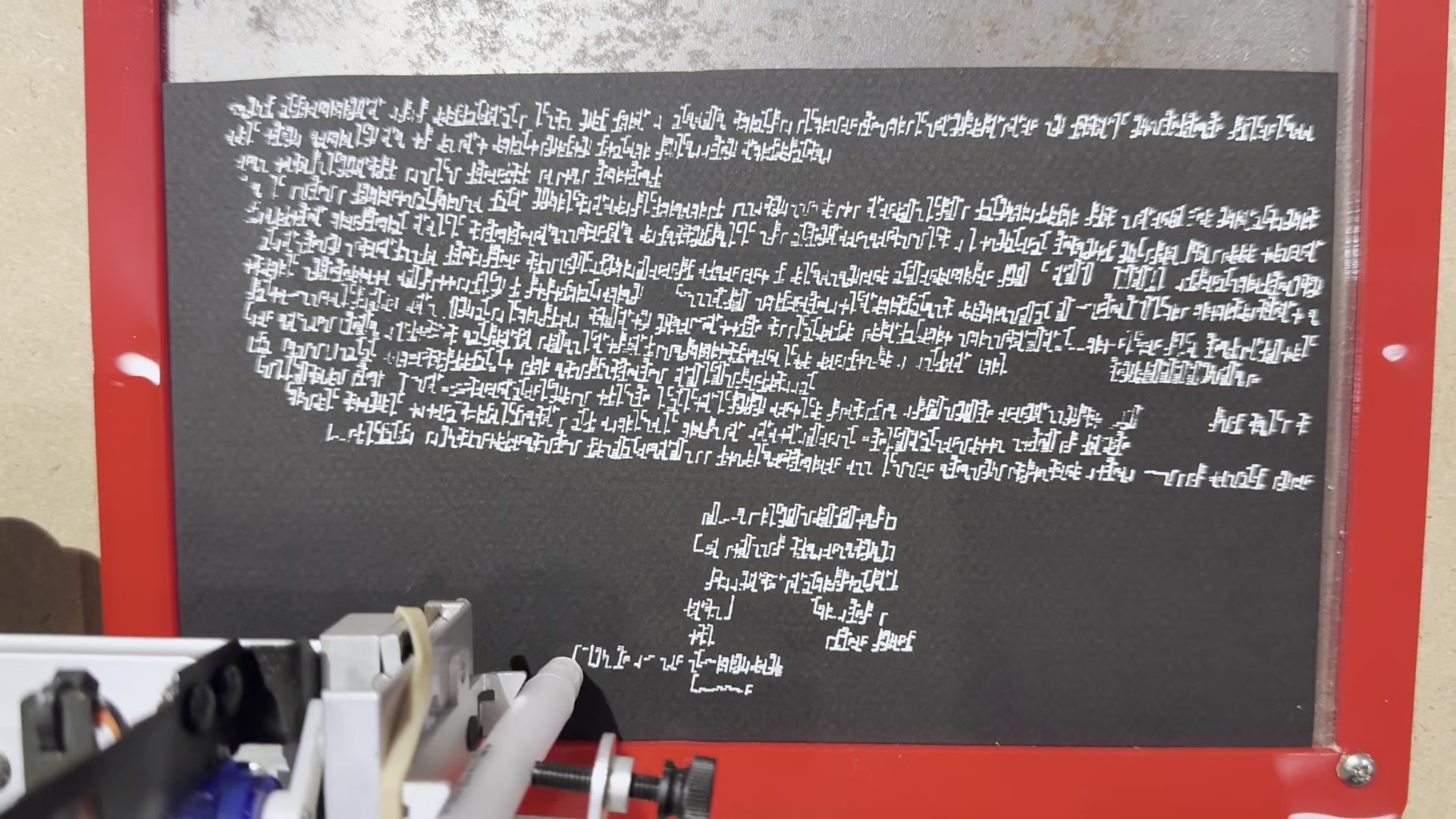

For the second showing, at the Harvard Coop in Cambridge in April 2026, I rebuilt how the machine is presented.

A pen plotter lying flat on a table is hard to watch. You have to stand over it and look down, only one person can do that at a time, and from any normal viewing angle the page is a foreshortened sliver. It also reads as equipment - as a demonstration of a device rather than as a piece.

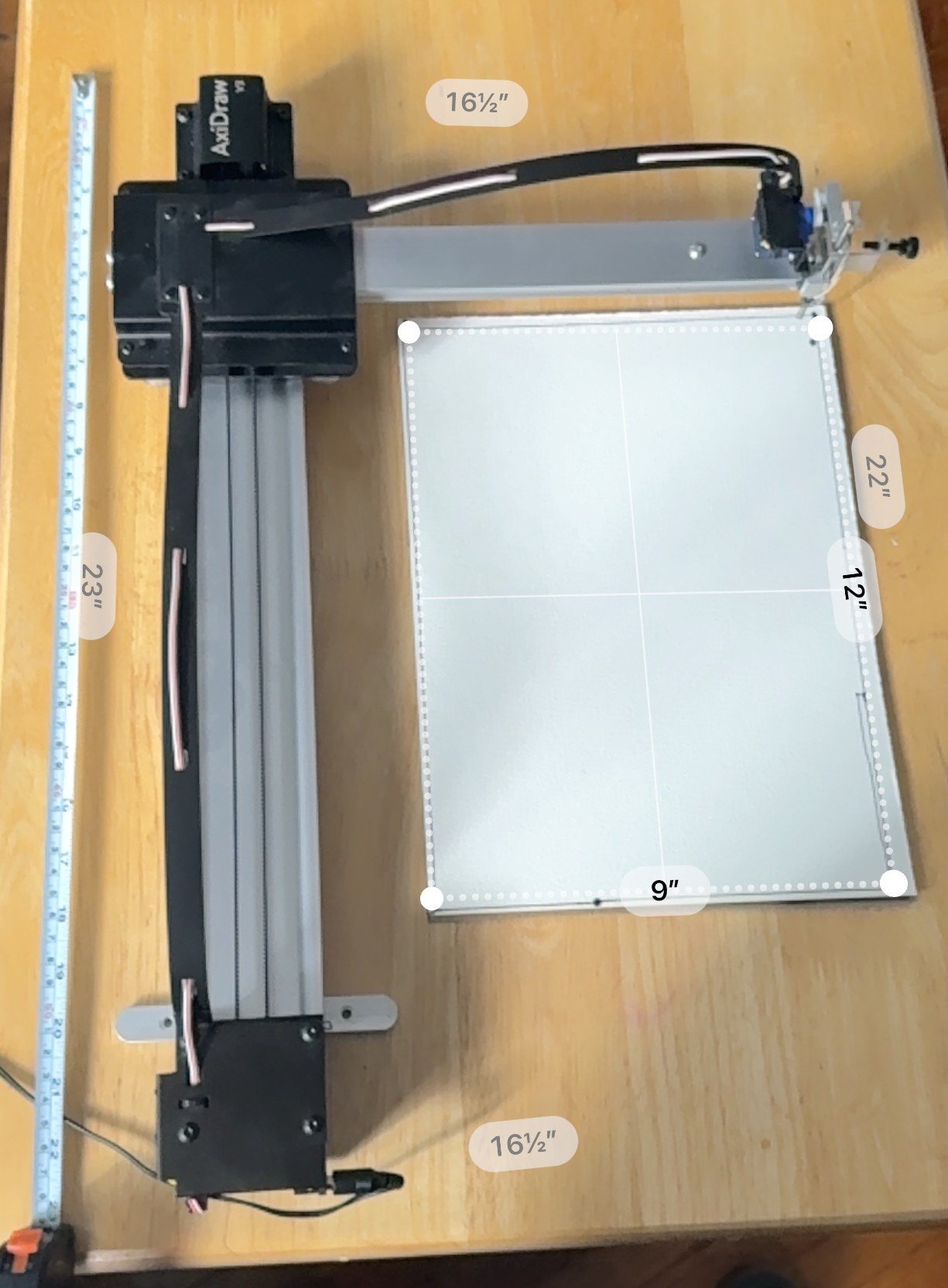

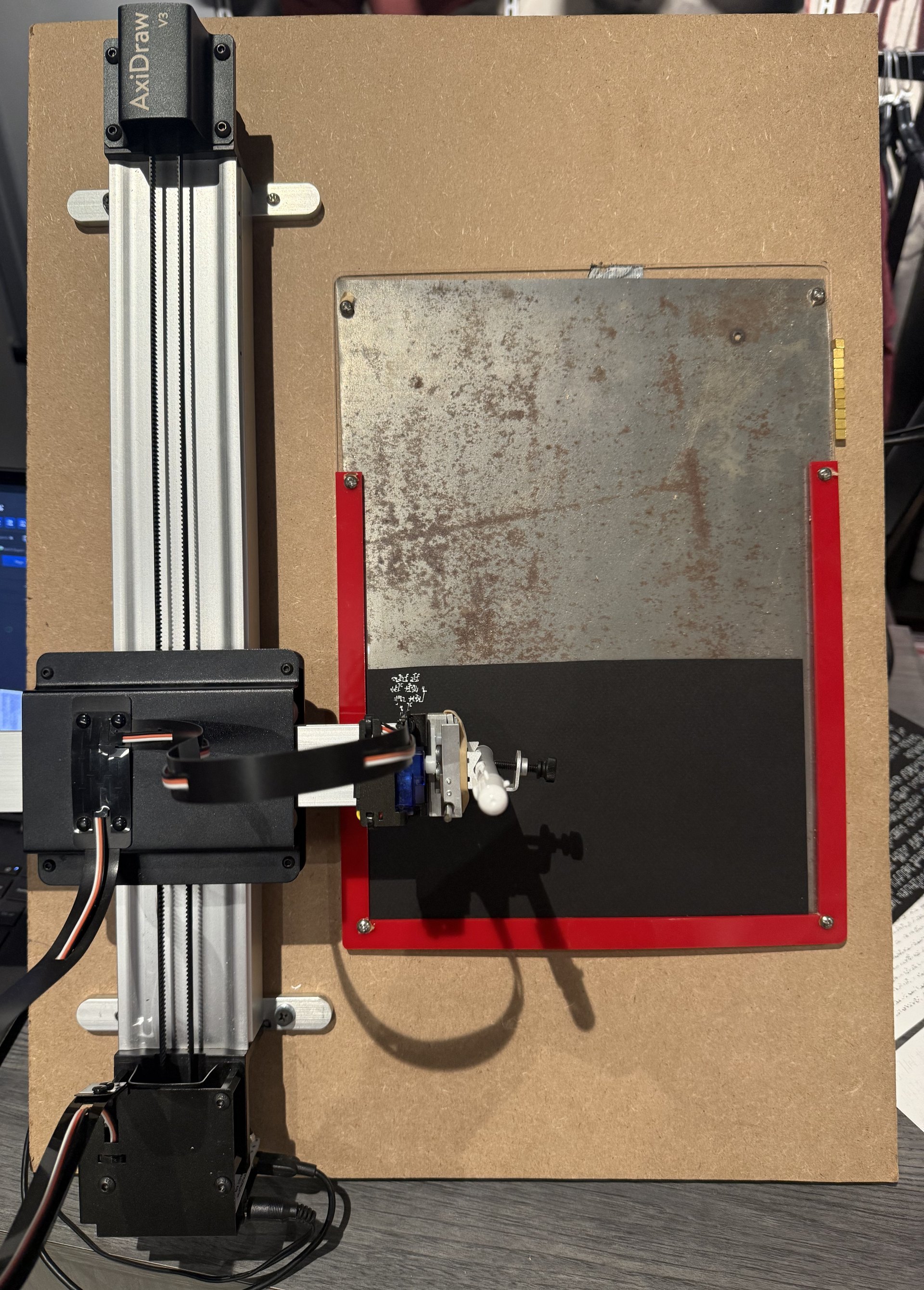

So I built a stand that holds the plotter and its paper almost vertical, like a page on an easel. The writing faces the room, several people can watch at once, and the machine reads as an object on display rather than a gadget on a bench. The measurements below are the start of that build; the CAD file for the plotter mount is in the project repository.

The generator is still a live tool rather than a finished artifact. It writes to SVG, so it drives any plotter or any software that reads vector paths, and its script keeps drifting as I change the numbers - which is, in a small way, what written languages do. The code is on GitHub if you want to generate a page of your own.
